Shop BRENNAN INDUSTRIES

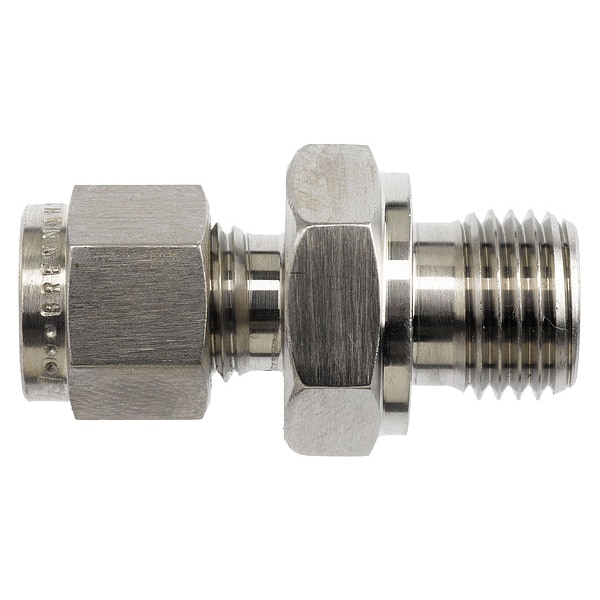

Strt, SS, Comp. 1/2 in, MBSPP 3/4 in

  • Mfr # N7002-08-08-SS

  • Zoro # G005386434

product price:  $27.25
/ea

Key Features

Specific Fitting Shape
Straight
Application
Hydraulics
Thread Size B
1/2-14
Fitting Side B Pipe Size
1/2 in
Maximum Operating Pressure
2611 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
N7002-08-08-SS
Zoro #
G005386434
UPC #
-
Country of Origin
India

Dimensions

Thread Size B
1/2-14
Fitting Side B Pipe Size
1/2 in
Pipe Size - Pipe Fitting
1/2 in x 1/2 in
Compression Thread Size
3/4-16
Hex Size
7/8 in
Overall Length
1 15/16 in
Compatible Tube Wall Thickness
0.041 in
Thread Size A
3/4-16
Fitting Side A Tube Outer Diameter
1/2 in
Thread Size 2
1/2-14
Thread Size 1
3/4-16
Fitting Side 1 Tube Outer Diameter
1/2 in
Fitting Side 2 Pipe Size
1/2 in
Wire Rope Length
1 15/16 in

Details

Specific Fitting Shape
Straight
Application
Hydraulics
Maximum Operating Pressure
2611 psi
Item
Compression Fitting Adapter
Fitting Connection Type
Instrumentation x MBSPP
Compliance
ASME Specifications, ASTM Specifications
System of Measurement
Imperial/Metric
Material Grade
316
Tube Fitting Material
Stainless Steel
Compatible Fitting Brands
Parker A-LOK, Swagelok
Series
Brennan Instrumentation
Standards
ASME B31.3-2002, ASTM A269-04, ASTM F1387
Resistance Properties
Vibration-Resistant
Temp. Range
-20 Degrees to 100 Degrees F
Fitting Side A Connection Type
Compression
Fitting Material
Stainless Steel
Max. Pressure
75000 psi
Special Features
All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Compensate for the Variables Encountered in the Tube and Materials, Do Not Significantly Reduce Flow Area, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on a Variety of Tube Materials, Work on Thick and Thin Wall Tubing
Maximum Operating Temperature
400 Degrees F
Fitting Side B Connection Type
MBSPP
Fitting Shape
Straight
For Media Type
Gases, Lubricants
Operating Pressure - Maximum
2,611 psi
Operating Temperature - Maximum
400 Degrees F
Fitting Side 1 Connection Type
Compression
Fitting Side 2 Connection Type
MBSPP
Precleaned Type
Cleaned and Bagged
Connector Type
Adapter
Ferrule Type
Double Ferrule

Description

Compression Fitting Adapter, Application Hydraulics, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MBSPP, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/2 in, Material Grade 316, Maximum Operating Pressure 2611 psi, Maximum Operating Temperature 400 Degrees F, Overall Length 1 15/16 in, Specific Fitting Shape Straight, Fitting Side B Pipe Size 1/2 in, Compatible Fitting Brands Parker A-LOK, Swagelok, Thread Size A 3/4-16, Thread Size B 1/2-14

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
