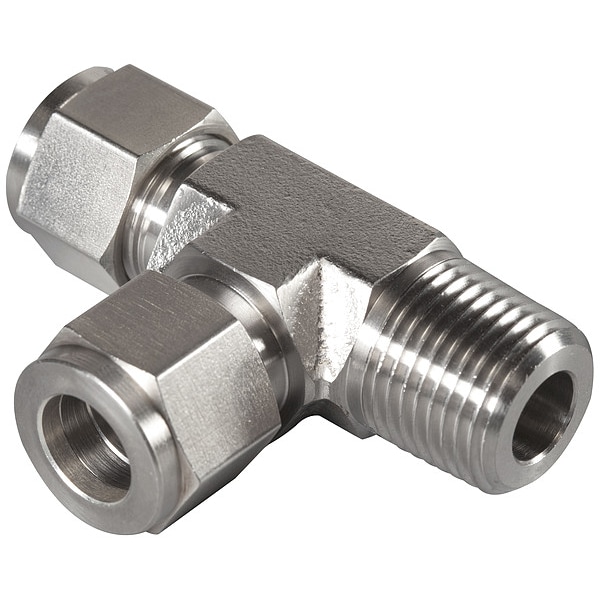

Tee, SS, Comp 1/4", Comp 1/4", MNPT 1/4"

  • Mfr # N2605-04-04-04-SS
  • Zoro # G305386448
product price:
$
32.55
/ea

Key Features

System of Measurement
Imperial
Series
Brennan Instrumentation
Fitting Side B Connection Type
Compression
Maximum Operating Pressure
4,020 psi
Standards
ASME B31.3-2002, ASTM A269-04
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
N2605-04-04-04-SS
Zoro #
G305386448
UPC #
-
Country of Origin
India

Dimensions

Thread Size C
7/16-20
Overall Length
1 31/32 in
Hex Size
14 mm
Fitting Side A Tube Outer Diameter
1/4 in
Thread Size B
1/4-18
Compatible Tube Wall Thickness
0.028 in
Thread Size A
7/16-20
Compression Thread Size
7/16-20
Fitting Side C Pipe Size
1/4 in
Pipe Size - Pipe Fitting
1/4 in x 1/4 in x 1/4 in
Fitting Side B Tube Outer Diameter
1/4 in
Fitting Side B Pipe Size
1/4 in
Thread Size 3
7/16"-20
Fitting Side 1 Tube Outer Diameter
1/4 in
Fitting Side 3 Pipe Size
1/4 in
Fitting Side 2 Tube Outer Diameter
1/4 in
Thread Size 2
1/4"-18
Thread Size 1
7/16"-20
Wire Rope Length
1 31/32 in
Length
1 31/32 in

Details

System of Measurement
Imperial
Series
Brennan Instrumentation
Fitting Side B Connection Type
Compression
Maximum Operating Pressure
4,020 psi
Standards
ASME B31.3-2002, ASTM A269-04
Application
Hydraulics, Tubing Systems
Minimum Operating Temperature
20 Degrees F
Fitting Material
Stainless Steel
Temp. Range
-20 Degrees to 100 Degrees F
Compatible Fitting Brands
Parker A-LOK, Swagelok
Fitting Side A Connection Type
Compression
Maximum Operating Temperature
100 Degrees F
Item
Compression Tee Fitting
Fitting Side C Connection Type
MNPT
Tube Fitting Material
Stainless Steel
Specific Fitting Shape
Tee
Max. Pressure
75000 psi
Compatible Tube Hardness
90 HRB
Fitting Connection Type
Instrumentation x MNPT x Instrumentation
Material Grade
316
Fitting Shape
Tee
Special Features
All Components are Made of the Same Material for Thermal Compatibility and Corrosion Resistance, Resist Temperature Cycling, Resist Vibration, Self-Aligning, Work on Thick and Thin Wall Tubing
Compliance
ASME Specifications, ASTM Specifications
For Media Type
Gases
Operating Temperature - Maximum
1,200 Degrees F
Operating Temperature - Minimum
20 Degrees F
Fitting Side 2 Connection Type
Compression
Fitting Side 1 Connection Type
Compression
Fitting Side 3 Connection Type
MNPT
Operating Pressure - Maximum
4,020 psi
Ferrule Type
Double Ferrule
Connector Type
Coupling
Precleaned Type
Cleaned and Bagged

Description

Compression Tee Fitting, Application Hydraulics, Tubing Systems, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type MNPT, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Thread Size C 7/16-20, Thread Size B 1/4-18, Thread Size A 7/16-20, System of Measurement Imperial, Compatible Fitting Brands Parker A-LOK, Swagelok, Material Grade 316
