Electric Heating Cable, 120VAC, 75 FT Length

  • Mfr # FFRG15-75

  • Zoro # G1653438

product price:  $321.99
/ea
Free Shipping & Returns

Key Features

Mounting Location
Wet or Dry
Cable Length
75 FT
Max. Circuit Length
75 ft
Heater Voltage
120VAC
Features
Automatically Adjusts Heat Output Based On Surface Temperature, Ideal for Freeze Protection and Low Temperature Process Maintenance
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FFRG15-75
Zoro #
G1653438
UPC #
-
Country of Origin
China

Dimensions

Cable Length
75 FT
Max. Circuit Length
75 ft
Length
75 ft.
Overall Width
3/8 in
Overall Length
75 ft
Wire Rope Length
75 ft

Details

Item
Electric Heating Cable
Mounting Location
Wet or Dry
Heater Voltage
120VAC
Features
Automatically Adjusts Heat Output Based On Surface Temperature, Ideal for Freeze Protection and Low Temperature Process Maintenance
Number of Conductors
2
Standards
IEEE Std 515-2004, NEC 427-23
For Use With
Gutters, Roof
Amps per Foot @ 40F
0.05 A
Watts per Foot @ 40F
6 W
Includes

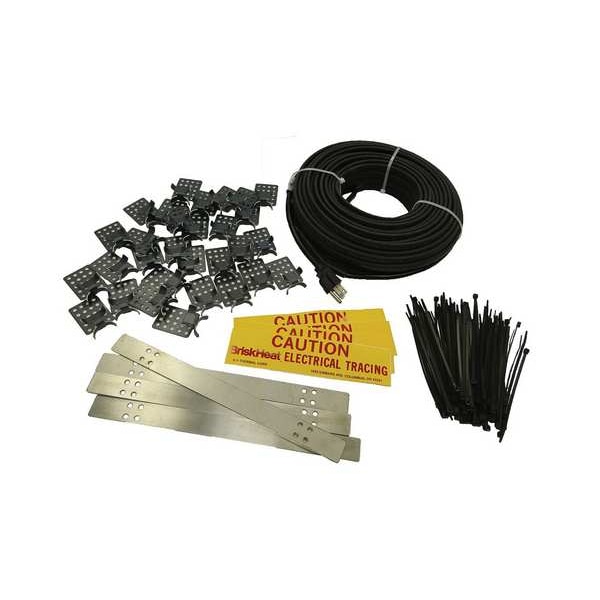

17 AWG Bus Wires, Caution Label, Downspout Hanger Bracket, Roof Clip, UV Resistant Cable Tie
Watts per Cable @ 40F
6 W
Amps per Cable @ 40F
3.75 A
Voltage
120V AC
Phase
1
Cable Material
17 AWG Bus Wires
Frequency
50/60 Hz
Cable Cover Material
Thermoplastic Elastomer
Min. Operating Temp.
-40 Degrees F
For Use Outdoors
Indoor/Outdoor
NEMA Plug Configuration
5-15P
Cable Type
Self-Regulating
Color
Black
Wattage Output
5 W, 10 W
Max. Operating Temp.
150 Degrees F
For Use Indoors/Outdoors
Indoor/Outdoor
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Power Connection Type
5-15P
Heating Cable Shielding Material
Thermoplastic Elastomer

Description

Electric Heating Cable, Overall Length 75 ft, Overall Width 3/8 in, Voltage 120V AC, Wattage Output 5 W, 10 W, Heating Cable Shielding Material Thermoplastic Elastomer, For Use Indoors/Outdoors Indoor/Outdoor, For Use With Gutters, Roof, 1 Phase, Frequency 50/60 Hz, Includes 17 AWG Bus Wires, Caution Label, Downspout Hanger Bracket, Roof Clip, UV Resistant Cable Tie, Standards IEEE Std 515-2004, NEC 427-23
