  11. Flanged Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

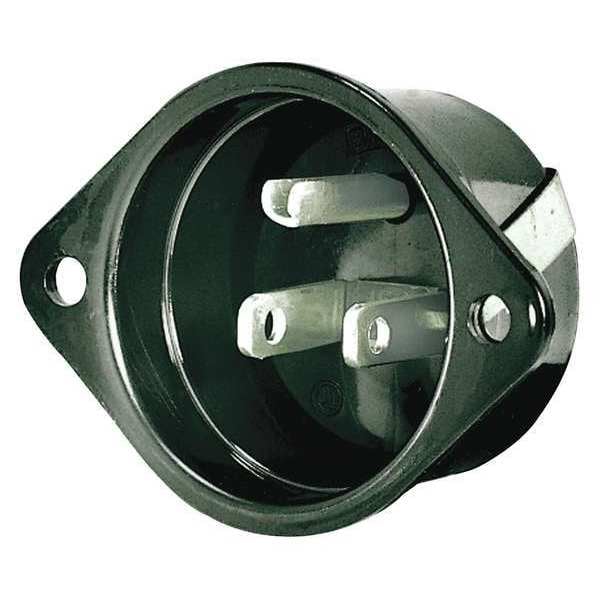

Bryant Flanged Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5278G - main

Flanged Straight Blade Inlet, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5278G

  • Zoro # G4819547

product price: $18.31
/ea

Key Features

Receptacle Type
Single
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5278G
Zoro #
G4819547
UPC #
781786625174
Country of Origin
United States

Dimensions

Height
1.55 in
Width
2.50 in
Flange Diameter
2.5 in
Flange Width
1.55 in
Mount Hole Center-to-Center Width
2 in
Flange Height
1.84 in
Display Size
Standard Sized Product
Length
1.84 in

Details

Item
Flanged Straight Blade Inlet
Receptacle Type
Single
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Corrosion Resistant
Flange Type
Flanged
Wiring Method
Back
Power Indicator
No
Special Features
Corrosion resistant
Mounting Type
Panel
Weather Resistant
No
Sub-Category
Single Receptacles
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15P
HP
1/2 hp
Outlet Type
Single
Number of Gangs
1
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Panel
Application Environment
Industrial
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
Yes
Tamper Resistant
No
Material
Nylon
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Back and Side
Minimum Operating Temperature
-40 Degrees F
Number of Blades
3
Includes Mounting Hardware
Yes
Connection Orientation
Straight
For Location
Indoor
Horsepower Rating
1/2 hp
Maximum Operating Temperature
75 Degrees C
Surge Protection
No
Housing Material
Nylon
Flange Material
Metallic
Market
Commercial, Industrial
NEMA Plug Configuration
5-15P
Cover Type
No Cover
Flange Shape
Oval
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Dielectric Strength
Withstands 3000V Minimum in
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Style
Clamp Type
Insulation
Insulated Body
Application
Extra Heavy Duty Industrial
Nema Rating
5-15P
Series
Heavy Duty
Material - Mounting Hardware
Screw Mounting
Wattage
1875

Description

Flanged Inlet, Cover Type No Cover, Current Rating 15 A, Flange Shape Oval, Grounding Grounded, Housing Color Black, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Voltage Rating 125V AC, Connection Orientation Straight, Flange Diameter 2.5 in, Flange Height 1.84 in, Flange Width 1.55 in, Flange Type Flanged, Horsepower Rating 1/2 hp, Includes Mounting Hardware Yes, Market Commercial, Industrial, Resistance Properties Corrosion Resistant
