  11. Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

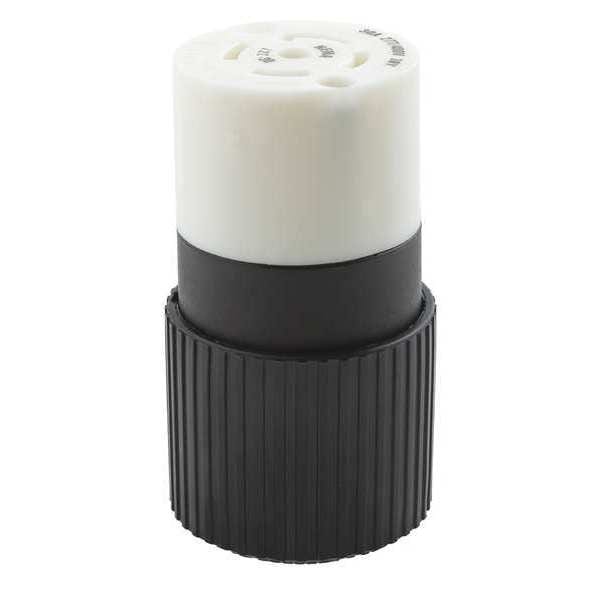

Bryant Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White 72320NC - main

Locking Connector, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # 72320NC

  • Zoro # G4439751

product price: $60.59
/ea

Key Features

NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
72320NC
Zoro #
G4439751
UPC #
781786702691
Country of Origin
United States

Dimensions

Cord Size
0.465 in to 1.150 in
Overall Length
2.13 in
Maximum Wire Size
12 AWG
Minimum Wire Size
18 AWG
Width
2.13 in
Wire Size
#18 AWG to #8 AWG
Length
2.13 in
Height
3.90 in
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.465 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
IP Rating
IP20
Grade
Industrial
Material
Nylon
Market
Industrial
Polarized
Yes
For Environment
Dry
Midget Locking
No
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor
Housing Material
Nylon
Power Indicating Light
No
Conductor Range
#14 AWG to #12 AWG
Insulation
Insulated Body
Material - Mounting Hardware
Cord Mounted
Application
Heavy Duty Industrial
Features
Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Style
Internal Cord Clamp
Amperage Rating
20 A
Antimicrobial
No
Power Indicator
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L23-20R, Number of Poles 4, Number of Wires 5, Phase Three, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 347/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial
