Shop MOLEX

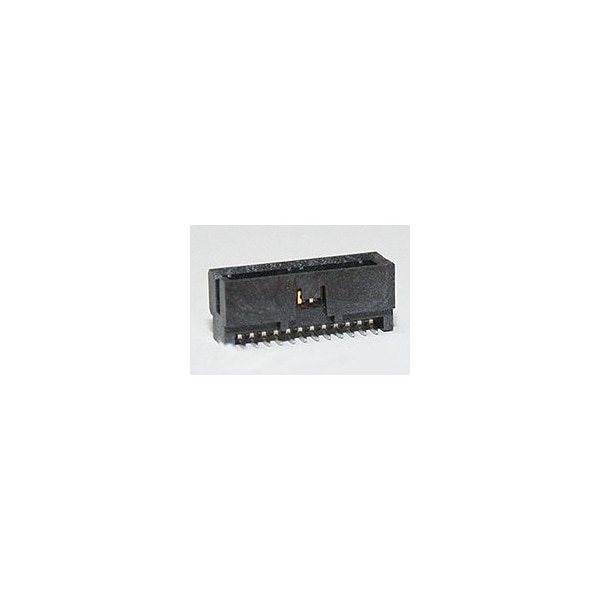

Slimgrid Shrd Hdr Vt/oCap 0.05AuLF 24Ckt

  • Mfr # 200989-0024

  • Zoro # G4035434

product price:
$
2.69
/ea
Sold in multiples of 40 for $107.60

Key Features

Number of Rows
2
Material - Resin
Liquid Crystal Polymer
Process Temperature max. C
260
Voltage - Maximum
125V AC
Material - Plating Termination
Matte Tin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
200989-0024
Zoro #
G4035434
UPC #
-
Country of Origin
Singapore
Number of Rows
2
Material - Resin
Liquid Crystal Polymer
Process Temperature max. C
260
Voltage - Maximum
125V AC
Material - Plating Termination
Matte Tin
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
Material - Plating Mating
Gold
Max. Cycles at Max. Process Temperature
1
Material - Metal
Copper Alloy
Circuits (Loaded)
24
Current - Maximum per Contact
1.4A
Pitch - Mating Interface
1.27mm
Guide to Mating Part
Yes
Durability (mating cycles max)
500
UL
E29179
Plating min - Termination
2.000µm
Circuits (maximum)
24
Plating min - Mating
0.051µm
Duration at Max. Process Temperature (seconds)
10
Orientation
Vertical
Shrouded
Fully
CSA
LR19980
Flammability
94V-0
Color - Resin
Black
Temperature Range - Operating
-55° to +105°C
Termination Interface: Style
Surface Mount
Pitch - Termination Interface
1.27mm
