  11. Locking Connector, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

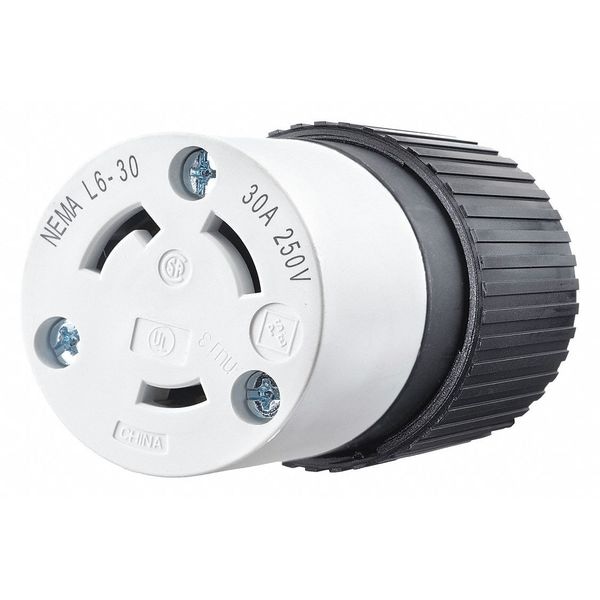

Bryant Locking Connector, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 70630NC - main

Locking Connector, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 70630NC

  • Zoro # G4439867

product price: $46.06
/ea

Key Features

NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70630NC
Zoro #
G4439867
UPC #
781786689497
Country of Origin
China

Dimensions

Cord Size
0.300 in to 0.950 in
Overall Length
2.13 in
Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Width
2.13 in
Height
3.90 in
Wire Size
#18 AWG to #8 AWG
Length
2.13 in
For Minimum Cable Diameter
0.30 in
For Maximum Cable Diameter
0.95 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified, UL Listed
Resistance Properties
Chemical Resistant, Impact Resistant
Grade
Industrial
IP Rating
IP20
Material
Nylon
Polarized
Yes
For Location
Indoor
Minimum Operating Temperature
-40 Degrees F
Power Indicating Light
No
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Market
Industrial
Midget Locking
No
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating
30 A
Conductor Range
#12 AWG to #8 AWG
Insulation
Insulated Body
Style
Internal Cord Clamp
Material - Mounting Hardware
Cord Mounted
Features
Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention
Application
Heavy Duty Industrial
Power Indicator
No
Antimicrobial
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L6-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Grade Industrial, Grounding Grounded, Market Industrial
