  11. Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White

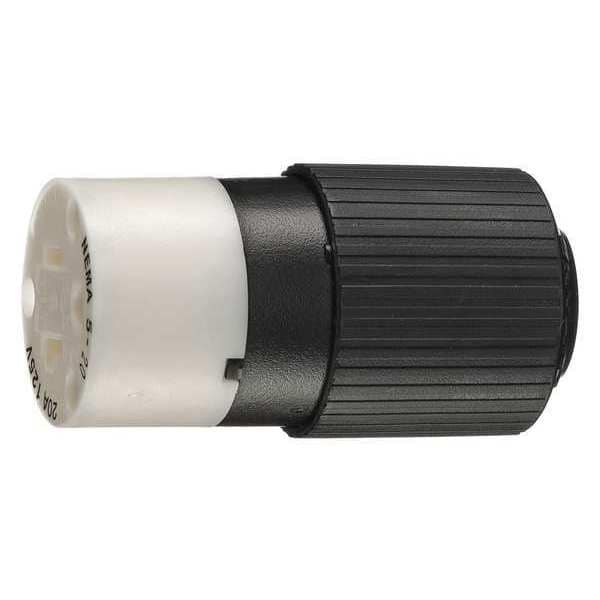

Bryant Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White BRY5369NC - main

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White

  • Mfr # BRY5369NC

  • Zoro # G4438975

product price: $27.59
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY5369NC
Zoro #
G4438975
UPC #
781786005952
Country of Origin
China

Dimensions

Cord Size
0.245 in to 0.655 in
For Minimum Cable Diameter
0.25 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Length
2.95 in
For Maximum Cable Diameter
0.66 in
Width
1.52 in
Display Size
Standard Sized Product
Height
1.38 in
Length
2.95 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
Not Rated
Standards
NEMA WD-1, NEMA WD-5, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Antimicrobial
No
Power Indicator
No
Material
Nylon
Special Features
Dust Resistant
Corrosion Resistant
No
Voltage
125VAC
Grade
Industrial
Housing Material
Nylon
Market
Commercial, Industrial
For Location
Indoor
Power Indicating Light
No
For Environment
Dry
Grade - Plugs and Receptacles
Industrial
NEMA Plug Configuration - Plugs and Receptacles
5-20R
Material - Mounting Hardware
Cord Mounted
Application
Extra Heavy Duty Industrial Grade
Style
Extra Heavy Duty
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Insulation
Insulated Body
Nema Rating
5-20P
Cord Range
0.300"-0.655"
Number Of Conductors
3-Wire Grounding
Series
Industrial
Conductor Range
#14 AWG to #10 AWG
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Description

Straight Blade Connector, Current Rating 20 A, Housing Color Black, White, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.25 in, Grade Industrial, Grounding Grounded, Housing Material Nylon, IP Rating Not Rated, Market Commercial, Industrial, Maximum Wire Size 10 AWG
