  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

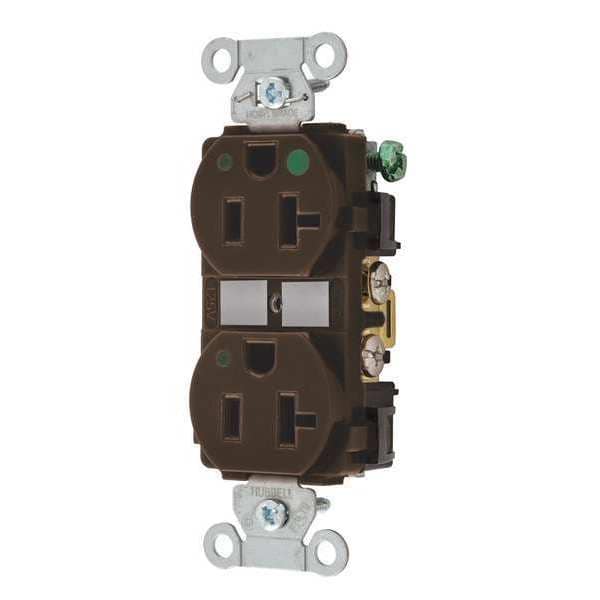

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300HBL - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300HBL

  • Zoro # G4571327

product price: $9.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300HBL
Zoro #
G4571327
UPC #
00781786147348
Country of Origin
United States

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
12 AWG
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Overall Depth
1.2 in
Face Plate Height
2.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Power Indicator
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Surge Suppression
No
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon
Number of Gangs
1
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Application Environment
Hospital Grade
Weather Resistant
No
Mounting Type
Flush
Special Features
Illuminated
Voltage
125VAC
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Surge Protection
No
Connection Orientation
Straight
Cover Type
No Cover
For Location
Indoor
Polarized
Yes
Features
Night Light
Housing Material
Nylon
Grade
Hospital Grade Fed. Spec.
GFCI
No
AFCI
No
Contact Material
Brass
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
