  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A

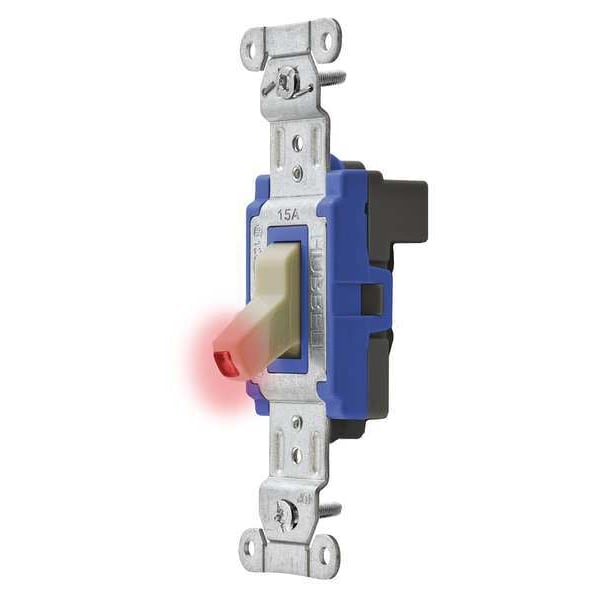

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A SNAP1201PLI - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A

  • Mfr # SNAP1201PLI

  • Zoro # G4553805

product price: $16.85
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1201PLI
Zoro #
G4553805
UPC #
783585186528
Country of Origin
United States

Dimensions

Overall Width
1.3 in
Overall Height
1.7 in
Height
1.74 in
Length
4.18 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Rated HP
1/2 to 2
Description/Special Features
Light On with Load On
Antimicrobial
No
Standards
UL Listed
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
Resistance Properties
Impact Resistant
Wire Connection Type
Modular Wiring
Horsepower Rating
2 hp
Market
Industrial
Number of Switches
1
Pilot Light
Yes
Current Rating
15 A
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Type
Toggle
Style
Single Pole
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Base Material
Thermoplastic, Black
Top Material
Thermoplastic, Blue
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Toggle Material
Thermoplastic
Terminals
Brass
Terminal Accommodations
Uses SNAPConnect Connector
Max. Continuous Current
15A
Toggle Color
Ivory
Max. Working Voltage
277V AC
Temperature Rise
30°C maximum at rated current
Contacts
Silver Alloy
Number Of Poles
Single Pole
Material
Thermoplastic
Item Type
Single Pole Pilot Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Series
Pilot Light
Indicator
Light On with Load On
Industry Standard(s)
UL Listed
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
15 A
Indicator(s) Type
Red LED
Current / Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Voltage Rating Description
120-277 VAC

Description

Pilot Light Wall Switch, Color Ivory, Current Rating 15 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
