  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

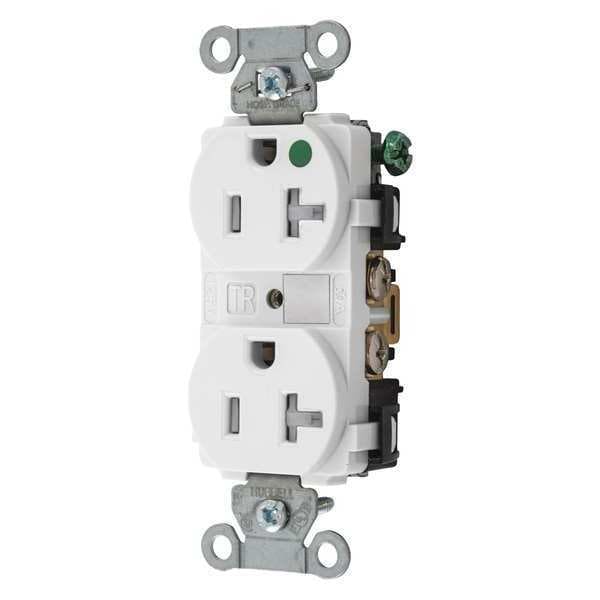

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8300HBWTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8300HBWTR

  • Zoro # G4845456

product price: $18.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300HBWTR
Zoro #
G4845456
UPC #
00781786147270
Country of Origin
United States

Dimensions

Overall Depth
1.2 in
Minimum Wire Size
12 AWG
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
No
Material
Nylon
HP
1 hp
Outlet Type
Duplex
Special Features
Corrosion resistant
Application Environment
Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
No
Corrosion Resistant
Yes
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Sub-Category
Duplex Receptacles
Voltage
125VAC
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Surge Protection
No
Grade
Hospital Grade Fed. Spec.
Cover Type
No Cover
Housing Material
Nylon
Contact Material
Brass
UL 94 Flammability Rating
V-2
AFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Polarized
Yes
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC
