  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

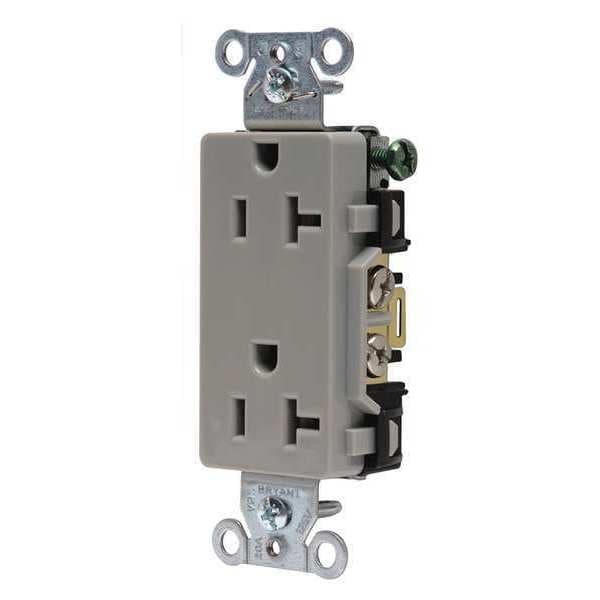

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded DRS20GRY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # DRS20GRY

  • Zoro # G4845088

product price: $7.09
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DRS20GRY
Zoro #
G4845088
UPC #
781786410565
Country of Origin
China

Dimensions

Height
1.07 in
Width
1.38 in
Mount Hole Center-to-Center Height
4.1 in
Face Plate Height
2.7 in
Overall Depth
1.1 in
Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
HP
1 hp
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Commercial
Weather Resistant
No
Special Features
Corrosion resistant
Outlet Type - Plugs and Receptacles
Decorator Duplex
Voltage
125VAC
Tamper Resistant
No
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon
Surge Suppression
No
Sub-Category
Decorator Receptacles
Corrosion Resistant
Yes
Outlet Type
Decorator
Wiring Method - Plugs and Receptacles
Back and Side
Housing Material
Composite
Includes
Mounting Hardware
Cover Type
No Cover
Horsepower Rating
1 hp
Polarized
Yes
Grade
Federal Specification
Market
Commercial, Industrial
For Location
Indoor
Surge Protection
No
GFCI
No
AFCI
No
Contact Material
Brass
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Wattage
2500
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Decorator
Nema Rating
5-20R
Series
Commercial
Application
Commercial Grade

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
