  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

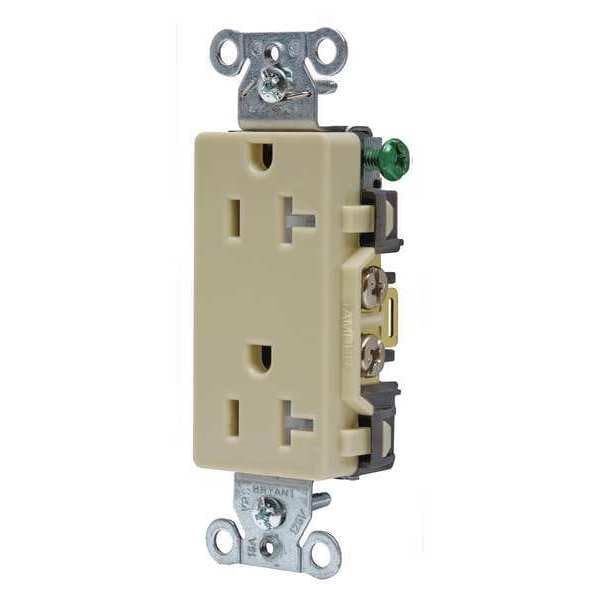

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded DRS20ITR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # DRS20ITR

  • Zoro # G4845060

product price: $11.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DRS20ITR
Zoro #
G4845060
UPC #
781786144194
Country of Origin
China

Dimensions

Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Decorator Receptacles
Number of Gangs
1
Tamper Resistant
Yes
HP
1 hp
Corrosion Resistant
Yes
Voltage
125VAC
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Special Features
Corrosion resistant
Outlet Type
Decorator
Weather Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
No
Material
Nylon
Polarized
Yes
AFCI
No
Includes
Mounting Hardware
Surge Protection
No
Market
Commercial, Industrial
For Location
Indoor
Connection Orientation
Straight
GFCI
No
Housing Material
Composite
Cover Type
No Cover
Grade
Federal Specification
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Application
Commercial Grade
Series
Commercial
Wattage
2500
Material - Mounting Hardware
Screw Mounting
Style
Decorator
Nema Rating
5-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
