  11. Straight Blade Receptacle, 5-50R, 50 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

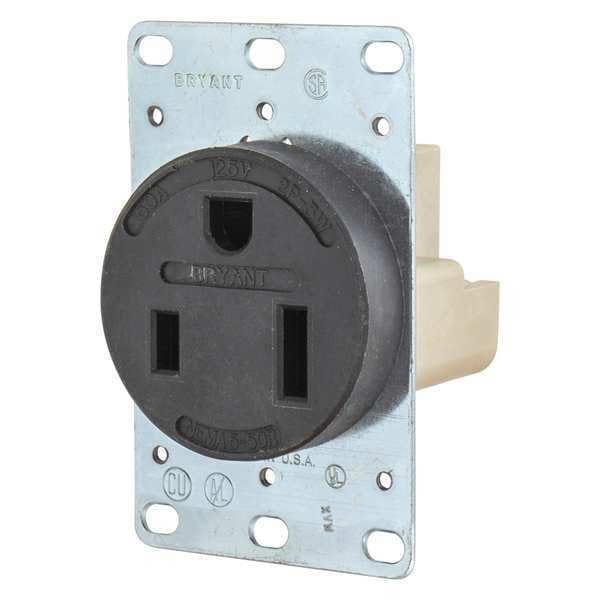

Bryant Straight Blade Receptacle, 5-50R, 50 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 9550FR - main

Straight Blade Receptacle, 5-50R, 50 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 9550FR

  • Zoro # G4438360

product price: $43.95
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-50R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9550FR
Zoro #
G4438360
UPC #
781786676886
Country of Origin
United States

Dimensions

Maximum Wire Size
6 AWG
Minimum Wire Size
10 AWG
Display Size
Standard Sized Product
Wire Size
#10 AWG to #6 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-50R
Current Rating
50 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Heat Resistant, Impact Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Material
Thermoplastic Polymer
Application Environment
Industrial
HP
2 hp
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Single
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-50R
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back
Number of Gangs
1
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
Power Indicator
No
Voltage
125VAC
Outlet Type
Single
Sub-Category
Single Receptacles
Connection Orientation
Straight
Includes Mounting Hardware
Yes
GFCI
No
Market
Commercial, Industrial
Grade
General Use
Polarized
Yes
Surge Protection
No
Housing Material
Thermoplastic
AFCI
No
Includes
Mounting Hardware
For Location
Indoor
Cover Type
No Cover
Horsepower Rating
2 hp
Series
Heavy Duty
Style
Smooth Face
Application
Industrial Grade
Wattage
6250
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-50R

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-50R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Heat Resistant, Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
