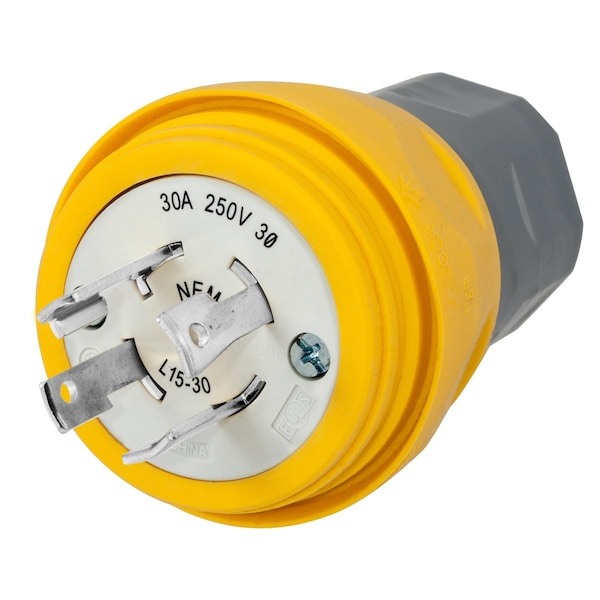

Watertight Locking Plug, L15-30P, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow
Mfr # BRY28W75
Zoro # G404391985
product price:Â
$
94.25
/ea
Key Features
NEMA Plug Configuration
L15-30P
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BRY28W75
- Zoro #
- G404391985
- UPC #
- 781786378766
- Country of Origin
- United States
Dimensions
- Wire Size
- Min. cords: #12/3 SJ, #16/3 S, #14/4 SJ, #18/4 S, #18/5 S;Max. cord: #8/3 S, #8/4 S, #10/5 S
- Length
- 2.77in
- Height
- 3.94 in
- Width
- 2.77 in
- For Minimum Cable Diameter
- 0.385 in
- For Maximum Cable Diameter
- 1.05 in
Details
- Item
- Watertight Locking Plug
- NEMA Plug Configuration
- L15-30P
- Current Rating
- 30 A
- Voltage Rating
- 250V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- Number of Blades
- 4
- Wire Connection Type
- Screw Terminals
- Connection Orientation
- Straight
- Grounding
- Grounded
- Housing Color
- Yellow
- Standards
- ANSI/UL 498 File E17740, CSA Certified C22.2 No. 42, NSF/ANSI/3-A 14159-1
- Resistance Properties
- Antimicrobial, Corrosion Resistant, Dust-tight, Watertight
- IP Rating
- IP69K
- Features
- Triple bypass seal keeps water away from electrical connections and works with previously installed devices; Corrosion-resistant connection points; High conductivity brass termination; Cone seal accomodates any cable range; Keyed interior for easy installation
- Amperage Rating
- 30 A
- Performance
- Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300VMoisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12UV resistance:All exposed materials are UV stabilizedFlammability:UL94V2 (plugs, connectors, and interiors)
Description
Locking Devices, Elastomeric, Male Plug, 30A 3- Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30P, Screw Terminal, Water/Dust-Tight Housing
