15.6" Cordless Crimping Tool 4.8 cu. ft.

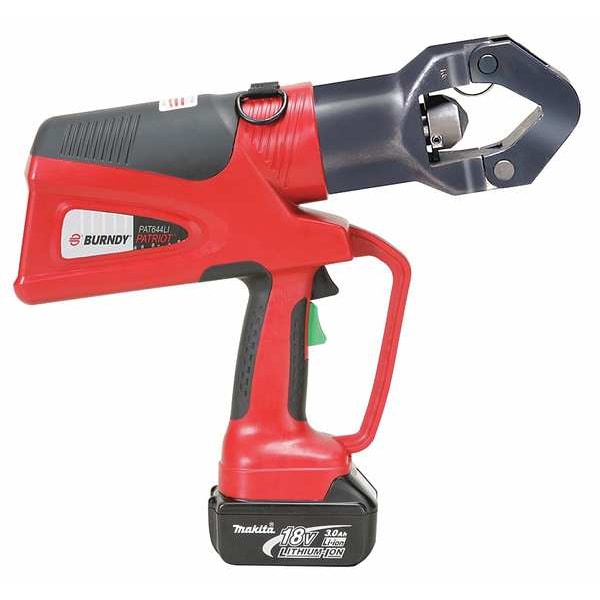

The Burndy PAT644LI is a cordless, battery-powered crimping tool from the PATRIOT 644 series, built for electrical wire and cable crimping. It delivers 11 tons of force through a latching crimp head and uses a dieless, range-taking system, so a single head covers a broad conductor range without changing dies. An auto-cycle function drives each crimp to completion with an approximate 2-second cycle time.

Key Features:

• The tool crimps copper from 6 AWG up to 1,000 kcmil, aluminum up to 900 kcmil, and copper flex up to 777 kcmil, and is compatible with copper, aluminum, copper flex, AAC, AAAC, ACAR, and ACSR conductors. It is rated to ANSI C119.4 and UL 486A-B (UL Listed), with UL 486A-B connection capability for Burndy connectors. The head rotates 355 degrees for working in confined spaces, and the tool uses an ergonomic pistol-grip body.
• Running on the Makita 18V LXT battery platform, the kit ships with the bare tool, two 18V lithium-ion batteries (BAT18VLI), a charger (PATCHGRLI), and a polymer carrying case. The tool weighs 14.55 lb and measures 15.62 in. long, 14.12 in. high, and 3.25 in. wide.
• MFR #: PAT644LI · Brand: Burndy · Series: PATRIOT 644
• Type: Cordless crimping tool · Head style: Latching · Power: Cordless
• Crimping force: 11 ton · Voltage: 18V · Auto-cycle: Yes (~2 sec)
• Crimp head: Dieless, range-taking (0 dies required)
• Copper capacity: 6 AWG–1,000 kcmil · Copper flex: up to 777 kcmil
• Aluminum capacity: 6 AWG–900 kcmil
• Compatible conductors: copper, aluminum, copper flex, AAC, AAAC, ACAR, ACSR
• Head rotation: 355° · Handle: pistol grip, ergonomic
• Battery platform: Makita 18V LXT · Batteries: (2) BAT18VLI 18V Li-ion · Charger: PATCHGRLI
• Weight: 14.55 lb · Overall: 15.62 in. L × 14.12 in. H × 3.25 in. W
• Includes: bare tool, (2) batteries, charger, polymer carrying case
• Standards: ANSI C119.4, UL 486A-B, UL Listed · UL 486A-B capability: Burndy
