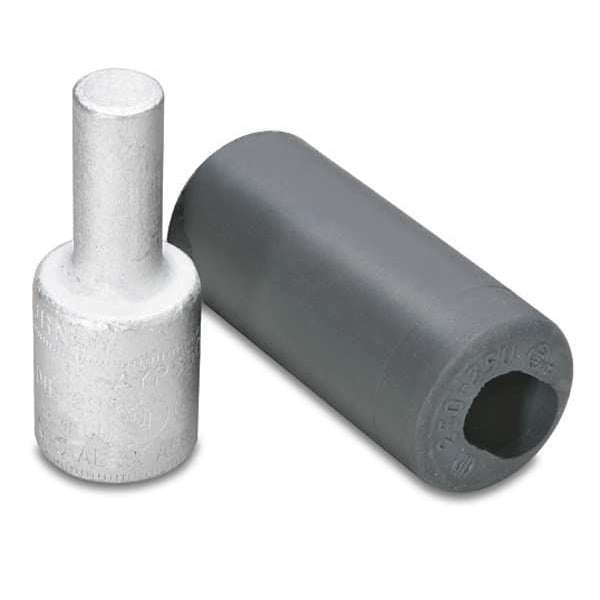

Compression Adapter, 2 AWG Max, Standard Barrel, Aluminum, Tan
Mfr # AYP2
Zoro # G4677346
CAD Available
product price: $20.19
/eaKey Features
CAD Drawing
For Wire Size
2 AWG
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
296
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AYP2
Zoro #
G4677346
UPC #
781810556429
Country of Origin
United States
Dimensions
For Wire Size
2 AWG
Barrel Size
Standard
Diameter
15/64 in
Width
0.6 in
Length
1.85 in
Max. Wire Size
2 AWG
Min. Wire Size
6 AWG
Length (Straight Wireway)
1.85 in
For Stranded Copper Wire Size - Minimum
2 AWG
Overall Length
1.85 in
Pin Length
0.68 in
Pin Diameter
0.234 in
For Stranded Copper Wire Size - Maximum
2 AWG
Barrel Diameter
0.6 in
For Stranded Aluminum Wire Size - Maximum
2 AWG
Strip Length
1 1/16 in
Barrel Length
1 in
Pin Equivalent Wire Size
4 AWG
Dimension - L Length Overall mm
47 mm
Conductor - Copper Str Size Range
2 AWG
Dimension - Length Overall inch
1.85 in
Conductor - Copper DLO Size Range
2 AWG
Conductor - Copper Flex I Size
2 AWG
Equivalent Pin Size
4 AWG
Conductor - Copper Flex I Size Range
2 AWG
Conductor - AL Str Size Range
2 AWG
Conductor Size
2 AWG
Maximum Wire Size
2 AWG
For Maximum Wire Size - Stranded
2 AWG
Maximum Run Wire Size
2 AWG
For Maximum Wire Size - Solid
2 AWG
For Minimum Wire Size - Stranded
2 AWG
Minimum Wire Size
6 AWG
For Minimum Wire Size - Solid
6 AWG
Minimum Run Wire Size
6 AWG
Description
Compression Pin Terminal, Connection Orientation Straight, Die Code 296, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 1, Pin Diameter 0.234 in, Pin Equivalent Wire Size 4 AWG, Pin Length 0.68 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 0.6 in, Barrel Length 1 in, Color Code Tan
