  11. Compression Adapter, 350 kcmil Max, Standard Barrel, Aluminum, Brown

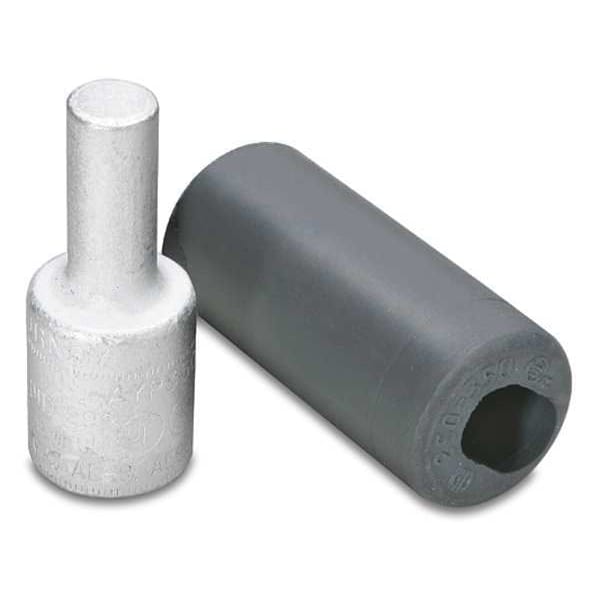

Burndy Compression Adapter, 350 kcmil Max, Standard Barrel, Aluminum, Brown AYP350 - main

Compression Adapter, 350 kcmil Max, Standard Barrel, Aluminum, Brown

  • Mfr # AYP350

  • Zoro # G4660013

product price: $45.25
/ea

Key Features

For Wire Size
350 kcmil
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
299
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AYP350
Zoro #
G4660013
UPC #
781810556481
Country of Origin
United States

Dimensions

For Wire Size
350 kcmil
Barrel Size
Standard
Width
1.11 in
Max. Wire Size
350 kcmil
Min. Wire Size
3/0 AWG
Length
2.75 in
Diameter
37/64 in
Length (Straight Wireway)
2.75 in
Pin Length
1.34 in
Strip Length
1 1/8 in
Barrel Length
1.07 in
For Stranded Copper Wire Size - Maximum
350 kcmil
Barrel Diameter
1.11 in
Pin Equivalent Wire Size
250 kcmil
Overall Length
2.75 in
For Stranded Copper Wire Size - Minimum
350 kcmil
Pin Diameter
0.578 in
For Stranded Aluminum Wire Size - Maximum
350 kcmil
Conductor - Copper DLO Size Range
313 kcmil
Conductor - AL Str Size
350 KCMIL
Dimension - Length Overall inch
2.75 in
Dimension - B Length fraction
1-1/16 in
Conductor Size
350 KCMIL
Equivalent Pin Size
250 kcmil
Conductor - AL Str Size Range
350 kcmil
Dimension - L Length Overall mm
70 mm
Conductor - Copper DLO Size
313 KCMIL
Conductor - Copper Str Compact Size
350 KCMIL
Dimension - P inch
1.34 in
Conductor - Copper Str Size Range
350 kcmil
Dimension - B Outside Diameter inch
0.57 in
Conductor - Copper Str Size
350 KCMIL
Dimension - A Outside Diameter inch
1.10 in
Dimension - B Length inch
1.07 in
Dimension - Strip Length inch
2008-01-01
For Maximum Wire Size - Stranded
350 kcmil
Maximum Run Wire Size
350 kcmil
Maximum Wire Size
350 kcmil
For Minimum Wire Size - Solid
3/0 AWG
For Maximum Wire Size - Solid
350 kcmil

Description

Compression Pin Terminal, Connection Orientation Straight, Die Code 299, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 2, Pin Diameter 0.578 in, Pin Equivalent Wire Size 250 kcmil, Pin Length 1.34 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.11 in, Barrel Length 1.07 in, Color Code Brown
