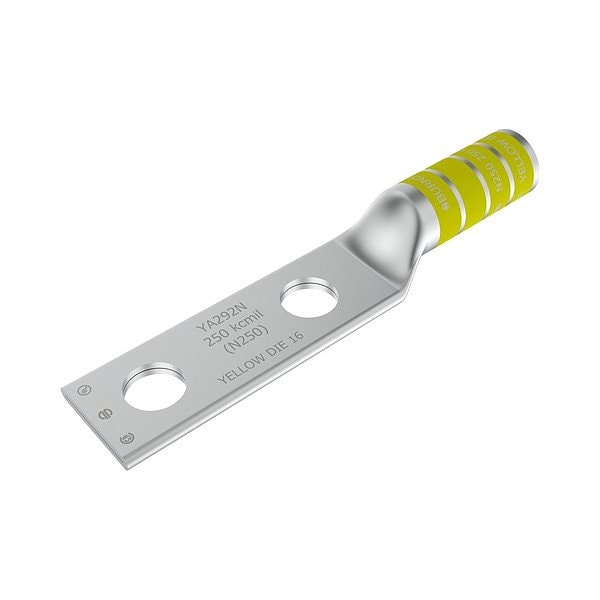

Compression Terminal
- Mfr # YA292TC38
- Zoro # G516451744
product price:Â
$
29.15
/ea
Key Features
Termination Style
Crimp
Barrel Style
Chamfered
Die Code
16
Tongue Thickness
0.16 in
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YA292TC38
- Zoro #
- G516451744
- UPC #
- 781810018125
- Country of Origin
- United States
- Item
- Compression Terminal
- Termination Style
- Crimp
- Barrel Style
- Chamfered
- Die Code
- 16
- Special Features
- Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
- Tongue Style
- Standard
- Color Code
- Yellow
- For Conductor Material
- Copper
- Hole Center to Center
- 1 in
- For Wire Type
- Solid, Stranded
- Contact Finish
- Tin
- Inspection Hole
- No
- Hole Center to End
- 0.41 in
- Maximum Voltage
- 35 kV
- Material
- Copper
- Standards
- CSA Certified, UL Listed
- Tongue Angle
- Straight
- Shell Material
- Copper
- Traction Material
- Copper
Dimensions
- Tongue Thickness
- 0.16 in
- For Stranded Copper Wire Size - Maximum
- 250 kcmil
- Overall Width
- 1.1 in
- For Stud Size
- 3/8 in
- Barrel Outside Diameter
- 0.75 in
- Strip Length
- 1 11/16 in
- Overall Length
- 4.02 in
- Barrel Size
- Long
- Hole Size
- 0.41 in
- For Stranded Copper Wire Size - Minimum
- 250 kcmil
- Tongue Width
- 1.1 in
- Barrel Inside Diameter
- 0.6 in
- Wire Rope Length
- 4.02 in
- Length
- 4.02 in
Description
Compression Lug, Barrel Size Long, Color Code Yellow, Die Code 16, Tongue Angle Straight, Tongue Width 1.1 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
