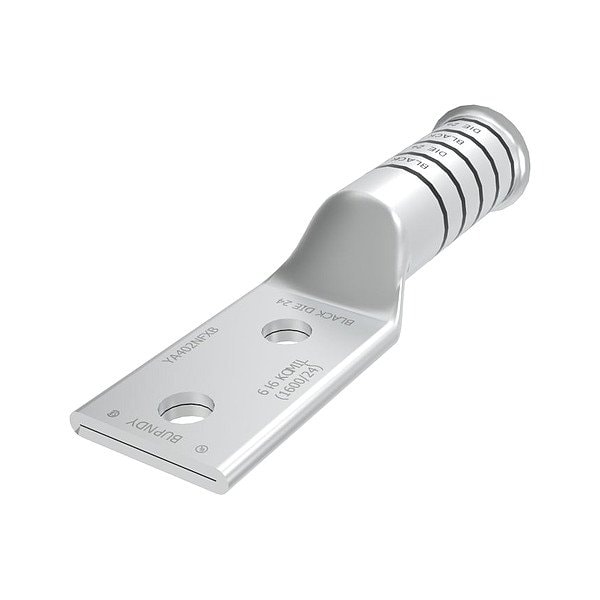

Compression Terminal
Mfr # YA402NFXB
Zoro # G816557719
product price:Â
$
172.99
/ea
Free Shipping & Returns
Key Features
Standards
CSA Certified, UL Listed
For Conductor Material
Copper
Overall Width
1.98 in
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
For Stranded Copper Wire Size - Maximum
650 kcmil
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA402NFXB
- Zoro #
- G816557719
- UPC #
- 781810053690
- Country of Origin
- United States
Dimensions
- Overall Width
- 1.98 in
- For Stranded Copper Wire Size - Maximum
- 650 kcmil
- Strip Length
- 3 5/16 in
- Tongue Width
- 1.98 in
- Hole Size
- 0.56 in
- Overall Length
- 7.22 in
- Tongue Thickness
- 0.3 in
- For Stud Size
- 1/2 in
- For Stranded Copper Wire Size - Minimum
- 650 kcmil
- Barrel Outside Diameter
- 1.35 in
- Barrel Size
- Long
- Wire Rope Length
- 7.22 in
- Length
- 7.22 in
Description
Compression Lug, Barrel Size Long, Color Code Black, Die Code 24, Tongue Angle Straight, Tongue Width 1.98 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 650 kcmil, For Stranded Copper Wire Size - Maximum 650 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
