  11. Copper Cable to Post/Flat, 10 sol

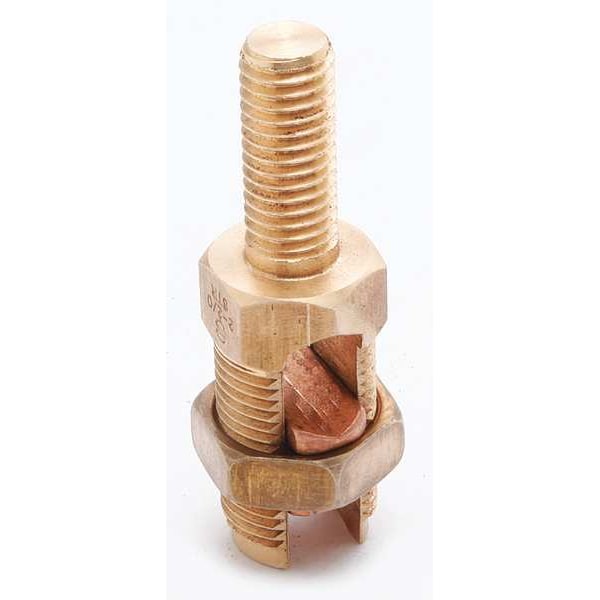

Burndy Copper Cable to Post/Flat, 10 sol K2C22B1 - main

Copper Cable to Post/Flat, 10 sol

  • Mfr # K2C22B1

  • Zoro # G4691626

product price: $46.15
/ea

Key Features

Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Thread Size - Grounding Stud
3/8 in 16
Thread Size
3/8"-16
Number of Wires - Grounding
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2C22B1
Zoro #
G4691626
UPC #
781810257159
Country of Origin
United States

Dimensions

Thread Size - Grounding Stud
3/8 in 16
Thread Size
3/8"-16
Stud Length
31/32"
Conductor Size
10 to 3 AWG STR
Length - Grounding Stud
31/32 in
Wire Size - Grounding
10 to 2 AWG Solid, 10 to 3 AWG Stranded
Grounding Wire Size
10 to 2 AWG SOL, 10 to 3 AWG STR
Overall Width
5/8 in
Overall Length
2 1/8 in
Dimension - Height fraction
1
Dimension - Nut Width inch
0.75 in
Dimension - L Length Overall mm
53.8 mm
Dimension - Height inch
1.00 in
Dimension - Bolt Size fraction
44993
Dimension - P inch
0.26 in
Conductor - Copper Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG
Dimension - Threads per inch
16
Conductor - Copper Solid Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Dimension - Body Width inch
0.62 in
Dimension - Length Overall inch
2.12 in
Dimension - B Length inch
0.96 in
Dimension - D inch
1.12 in
Dimension - B Length fraction
31/32 in
Conductor - Copper Solid Size Range
10 AWG-2 AWG
Conductor - Copper Str Size Range
10 AWG-3 AWG

Details

Item
Grounding Split Bolt Connector with Stud
Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Number of Wires - Grounding
1
Type - Grounding Connector
Mechanical
Material - Grounding Connector
Leaded Bronze Alloy
Material of Construction
Leaded Bronze alloy
Item - Grounding Connector
Grounding Split Bolt Connector with Stud
Connector Type
Mechanical
Installation Torque
280 in-lb
Connector Material
Leaded Bronze Alloy
Conductor Type
Run
Series
K2C, KC
Stud Installation Torque inch pounds
280 LBS/in
UL Listed
Yes
Standards - Industry Standards Met
UL467
Type
KC and K2C Series
Industry Standard(s)
UL467
Application
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
Plating Type
Unplated
Certification - UL Listed Direct Burial
Yes
Trade Name
SERVIT POSTâ„¢
Physical Attribute - Number of Conductors Accommodated Total
2

Description

Grounding Split Bolt Connector with Stud, Connector Material Leaded Bronze Alloy, Connector Type Mechanical, Grounding Wire Size 10 to 2 AWG SOL, 10 to 3 AWG STR, Number of Wires - Grounding 1, Overall Length 2 1/8 in, Thread Size 3/8 In.-16, Standards UL Listed, UL Listed-Direct Burial, UL467, Conductor Size 10 to 3 AWG STR, Conductor Type Run, Installation Torque 280 in-lb, Overall Width 5/8 in, K2C, KC
