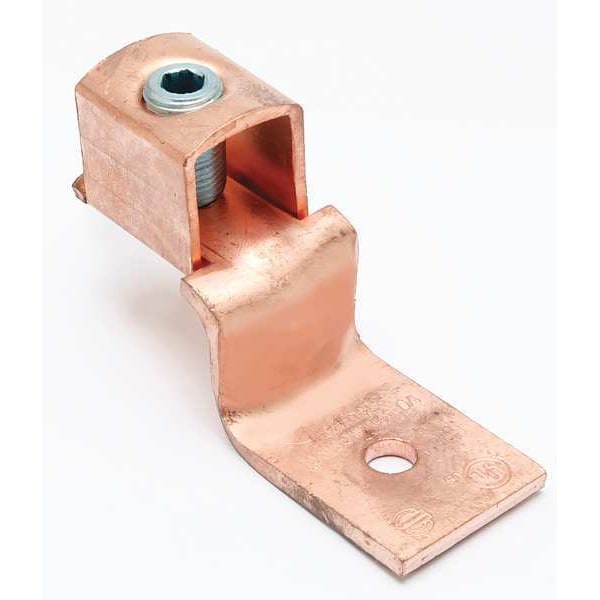

Burndy Mechanical Lug, 10 AWG Max, 1 Conductor, 1 Hole, #6 Stud, Copper KLU25 - main

Mechanical Lug, 10 AWG Max, 1 Conductor, 1 Hole, #6 Stud, Copper

  • Mfr # KLU25

  • Zoro # G4663145

product price:  $2.39
/ea

Key Features

Connector Type
Offset Tang
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
10 AWG
Number of Conductors
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
KLU25
Zoro #
G4663145
UPC #
781810554227
Country of Origin
India

Dimensions

For Minimum Wire Size
14 AWG
For Maximum Wire Size
10 AWG
For Stud Size
#6
Hole Diameter
0.14 in
Tongue Width
0.31 in
Max. Conductor Size
10 AWG Stranded/Solid
Length
1.02 in
Stud Size
#6
Width
0.31 in
Min. Conductor Size
14 AWG Stranded/Solid
Length (Straight Wireway)
1.02 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Width
0.75 in
Tongue Thickness
0.07 in
Overall Depth
5/16 in
Overall Length
1.02 in
Strip Length
7/16 in
For Stranded Copper Wire Size - Maximum
10 AWG
Conductor Size
14-10 AWG
Dimension - Hole Size mm
4 mm
Dimension - L Length Overall mm
26 mm
Dimension - Screw Size inch
11902
Dimension - Strip Length inch
45123
Dimension - N inch
0.21 in
Dimension - Stud Size inch
#6
Dimension - Hole Size inch
0.14 in
Dimension - Pad Width inch
0.31 in
Conductor - Copper Str Size Range
14-10
Dimension - B Length fraction
9/32 in
Dimension - Bolt Size fraction
#6
Dimension - Length Overall inch
1.02 in
Conductor - Copper Solid Size Range
14-10
Conductor - Copper Solid Size
14;13;12;11;10
Dimension - B Length inch
0.28 in
Conductor - Copper Str Size
14;12;10

Details

Item
Mechanical Lug
Connector Type
Offset Tang
For Conductor Material
Copper
Number of Conductors
1
Number of Terminations
1
Number of Holes
1
Body Material
Copper
Contact Finish
Unplated
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Standards
cULus Listed, UL Listed
No. of Conductors
1
Material
Copper
Head Style
Slotted
Compatible with Product Type
Copper Cable
Special Features
Easy Installation, Long Lasting Reliable Contact
Torque
20 in-lb
Color
Bare
Type
Bolted Lugs & Terminals
Physical Attribute - Number of Holes
1
Plating Type
Unplated
Application
For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bar And Offset Tongue, Non-Plated
Plated
N
Physical Attribute - Screw Type
Slot
UL Listed
No
Hardware Type
No. 8-32 Slotted RoundMachine Screw
Industry Standard(s)
UL467
Certification - cULus
Yes
Trade Name
SCRULUGâ„¢
Physical Attribute - Number of Screws
1
Certification - UL Listed Direct Burial
No
Conductor Type
CU C Solid-SizeCU C Str-Size
Certification - CSA Approved
No
Installation Torque Recommended in-lb
20

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 10 AWG, For Stud Size #6, Head Style Slotted, Number of Holes 1, Hole Diameter 0.14 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.31 in, Tongue Thickness 0.07 in, Connector Type Terminal
