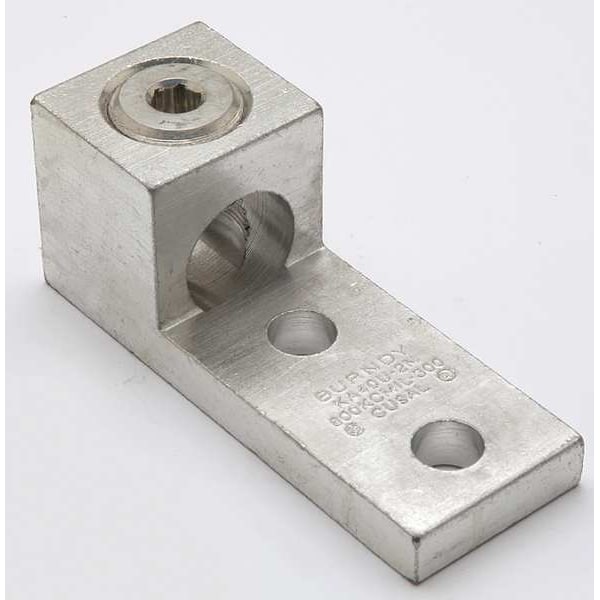

Mechanical Lug, 1000 kcmil Max, 1 Conductor, 2 Hole, 1/2 in Stud, Aluminum
Mfr # KA44U2N
Zoro # G4678371
product price: $39.95
/eaKey Features
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
500 kcmil
For Maximum Wire Size
1000 kcmil
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA44U2N
Zoro #
G4678371
UPC #
781810559215
Country of Origin
United States
Dimensions
For Minimum Wire Size
500 kcmil
For Maximum Wire Size
1000 kcmil
For Stud Size
1/2 in
Hole Diameter
0.56 in
Tongue Width
1.77 in
Stud Size
1/2 in
Min. Conductor Size
500 kcmil Stranded
Width
1.95 in
Max. Conductor Size
1000 kcmil Stranded
Length
4.75 in
Length (Straight Wireway)
4.75 in
Overall Depth
1 13/16 in
For Stranded Copper Wire Size - Minimum
500 kcmil
Overall Length
4.75 in
Tongue Length
3.03 in
For Stranded Copper Wire Size - Maximum
1000 kcmil
Tongue Thickness
0.5 in
Overall Width
1.95 in
Conductor Size
500-1000 KCMIL
Dimension - N inch
0.63 in
Dimension - L Length Overall mm
121 mm
Conductor - AL Str Size Range
500 kcmil-1000 kcmil
Dimension - Height inch
1.95 in
Conductor - AL Str Size
500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
Dimension - Width fraction
1-3/4 in
Conductor - Copper Str Size Range
500 kcmil-1000 kcmil
Dimension - Width inch
1.75 in
Dimension - Hole Size mm
14 mm
Conductor - Copper Str Size
500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
Dimension - Width mm
44 mm
Dimension - Bolt Size fraction
1 to 2
Dimension - Bolt Hole Size inch
0.50 in
Dimension - Hole Size inch
0.56 in
Dimension - D inch
3.03 in
Dimension - Pad Width inch
1.77 in
Dimension - Length Overall inch
4.75 in
Dimension - Height fraction
1.95 in
Dimension - Stud Size inch
44928
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 3.03 in, Tongue Width 1.77 in, Tongue Thickness 0.5 in
