  11. Mechanical Lug, 2 AWG Max, 1 Hole, Copper

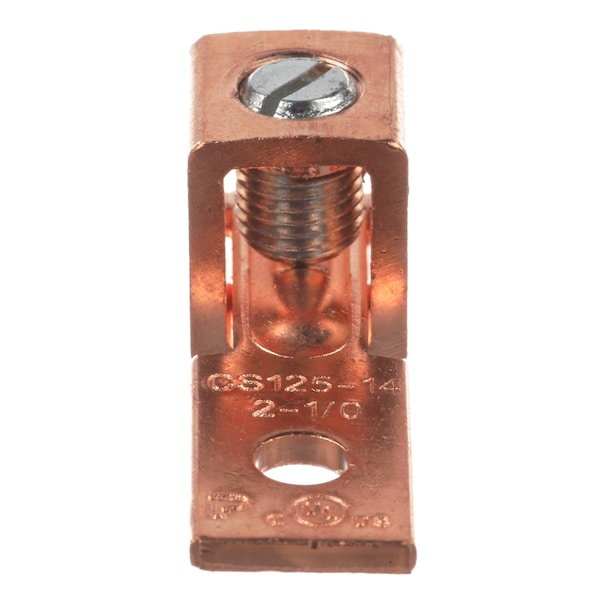

Panduit Mechanical Lug, 2 AWG Max, 1 Hole, Copper CS125-14SL-QY - main

Mechanical Lug, 2 AWG Max, 1 Hole, Copper

  • Mfr # CS125-14SL-QY

  • Zoro # G2757230

product price: $7.99
/ea

Key Features

For Conductor Material
Copper
For Minimum Wire Size
2 AWG
For Maximum Wire Size
2 AWG
Number of Holes
1
Body Material
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS125-14SL-QY
Zoro #
G2757230
UPC #
7498395532
Country of Origin
India

Dimensions

For Minimum Wire Size
2 AWG
For Maximum Wire Size
2 AWG
Overall Length
1.94 in
Height
0.9 in
Stud Hole Size (mm)
6.35
Overall Length (mm)
49.3
Minimum Copper Conductor Size (AWG STR)
2
Tongue Thickness (In.)
0.11
Overall Height (In.)
0.9
Tongue Thickness (mm)
2.8
Stud Hole Size (In.)
44930
Overall Height (mm)
22.4
Overall Length (In.)
1.94
Maximum Copper Conductor Size (AWG STR)
36526
Tongue Width
0.62 inches

Details

Item
Mechanical Lug
For Conductor Material
Copper
Number of Holes
1
Body Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
90 Degrees C
Tongue Type
Straight Floating Tongue
UL Temperature Rating (°C)
90
Product Type
Mechanical Connectors - Lug
Barrel Type
Single Barrel
Tongue Angle
Straight
Amperage (A)
125
Product Material
Copper
Product Name
Terminal Connector
Product Class
Wire Termination
Standards
cULus Listed
Contact Finish
Bare

Description

Copper Mechanical lug, 1 Hole, 1 Barrel, Straight Floating Tongue, #2 - 1/0 AWG, 1/4 (6.4mm) Stud

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
