  11. Mechanical Lug, 2 Conductor, 3/8 in Stud, Copper

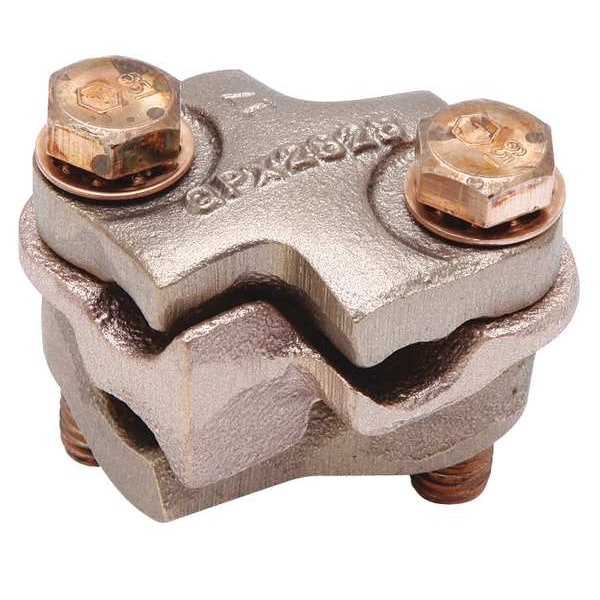

Burndy Mechanical Lug, 2 Conductor, 3/8 in Stud, Copper QPX2828 - main

Mechanical Lug, 2 Conductor, 3/8 in Stud, Copper

  • Mfr # QPX2828

  • Zoro # G4689036

product price: $98.95
/ea
Free Shipping & Returns

Key Features

No. of Conductors
2
Min. Conductor Size
1 AWG (Run) Stranded, 1 AWG (Tap)
Max. Conductor Size
4/0 AWG (Run) Stranded, 4/0 AWG (Tap)
Stud Size
3/8 in
Material
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QPX2828
Zoro #
G4689036
UPC #
781810554333
Country of Origin
Mexico

Dimensions

Min. Conductor Size
1 AWG (Run) Stranded, 1 AWG (Tap)
Max. Conductor Size
4/0 AWG (Run) Stranded, 4/0 AWG (Tap)
Stud Size
3/8 in
Length
2.13 in
Width
1.88 in
Length (Straight Wireway)
2.13 in
For Stud Size
3/8 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Overall Depth
1 13/16 in
Overall Length
1.81 in
Overall Width
2.38 in
For Stranded Copper Wire Size - Minimum
1 AWG
Dimension - L Length Overall mm
46 mm
Dimension - Width fraction
1-13/16 in
Dimension - Height fraction
39481
Dimension - Height inch
2.38 in
Dimension - Width inch
1.81 in
Dimension - Length Overall inch
1.81 in
Dimension - Width mm
46 mm

Details

Item
Mechanical Lug
No. of Conductors
2
Material
Copper
Standards
CSA Certified, UL Listed
Body Material
Copper
Head Style
Hex
Special Features
Edges Are Rounded For Easy Taping, For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking
Maximum Voltage
600 V
Contact Finish
Unplated
Number of Conductors
2
For Conductor Material
Copper
Number of Terminations
1
Compatible with Product Type
Copper Cable
Maximum Operating Temperature
194 Degrees F
Torque
240 in-lb
Type
QPX
Conductor - CopperWeld Solid Tap
9 AWG;8 AWG;7 AWG;6 AWG;5 AWG
Material - Hardware
DURIUMâ„¢ Silicon Bronze
Trade Name
VERSITAPâ„¢
Plated
N
Conductor - Copper Str Run
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Industry Standard(s)
UL486C
Conductor - Copper Str Tap
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - CopperWeld Str Run
3 A AWG;3 J AWG;3 K AWG;3 N AWG;3 P AWG;2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG;1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG;1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG;2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG;3/0 E AWG;3/0 EK AWG;3/0 F AWG;3/0 G AWG;3/0 J AWG;3/0 V AWG
Conductor - CopperWeld Str Tap Range
3 A AWG-3/0 V AWG
Conductor - CopperWeld Solid Run
9 AWG;8 AWG;7 AWG;6 AWG;5 AWG
Conductor - CopperWeld Str Run Range
3 A AWG-3/0 V AWG
Plating Type
Unplated
Conductor - Copper Str Tap Range
1 AWG-4/0 AWG
Conductor Type
CU C Str-RunCU Weld C Str-RunCU Weld C Solid-RunCU C Str-TapCU Weld C Str-TapCU Weld C Solid-Tap
Application
For Tee, Cross, Parallel, Butt And Tap Connections, Copper, Copperweld And Copperweld-Copper
Physical Attribute - Screw Type
Hexagonal Bolt
Conductor - CopperWeld Solid Tap Range
9 AWG-5 AWG
UL Listed
Yes
Certification - UL Listed Direct Burial
No
Conductor - CopperWeld Solid Run Range
9 AWG-5 AWG
Conductor - Copper Str Run Range
1 AWG-4/0 AWG
Installation Torque Recommended in-lb
240 LBS/in
Conductor - CopperWeld Str Tap
3 A AWG;3 J AWG;3 K AWG;3 N AWG;3 P AWG;2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG;1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG;1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG;2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG;3/0 E AWG;3/0 EK AWG;3/0 F AWG;3/0 G AWG;3/0 J AWG;3/0 V AWG
Certification - CSA Approved
No
Connector Type
Universal Clamp

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes Not Applicable, Hole Diameter Not Applicable, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Width Not Applicable, Tongue Thickness Not Applicable
