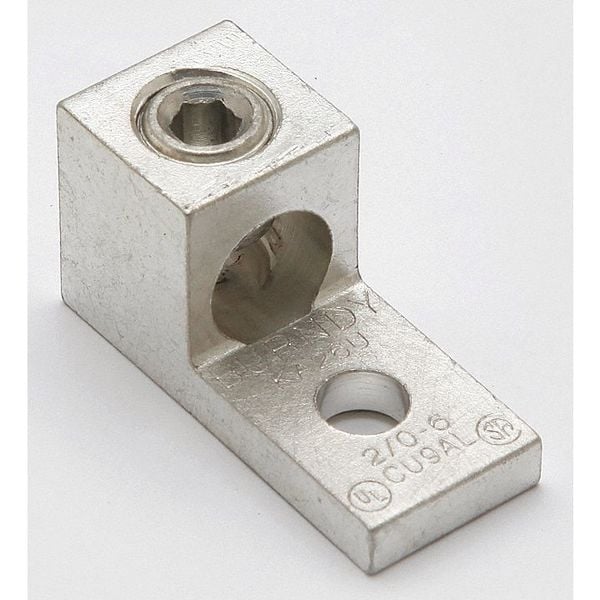

Mechanical Lug, 2/0 AWG Max, 1 Conductor, 1 Hole, 1/4 in Stud, Aluminum
Mfr # KA26U
Zoro # G4669987
CAD Available
product price: $4.49
/eaKey Features
CAD Drawing
No. of Conductors
1
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
2/0 AWG Stranded
Number of Holes
1
Stud Size
1/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA26U
Zoro #
G4669987
UPC #
781810559116
Country of Origin
Mexico
Dimensions
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
2/0 AWG Stranded
Stud Size
1/4 in
Length
1.47 in
Width
0.8 in
Length (Straight Wireway)
1.47 in
For Stud Size
1/4 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Length
1.47 in
Overall Depth
5/8 in
Tongue Width
0.64 in
Hole Diameter
0.27 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
Tongue Thickness
0.19 in
Tongue Length
0.81 in
Overall Width
0.8 in
Conductor Size
6-2/0 AWG
Dimension - Bolt Size fraction
2023-01-04
Dimension - Width mm
16 mm
Dimension - Width fraction
63/100 in
Dimension - Width inch
0.63 in
Dimension - Hole Size inch
0.27 in
Dimension - Height fraction
4/5 in
Dimension - Height inch
0.80 in
Dimension - Bolt Hole Size inch
0.25 in
Conductor - AL Str Size
14;4;3;2;1;1/0;2/0
Dimension - D inch
0.81 in
Dimension - Pad Width inch
0.64 in
Conductor - AL Str Size Range
14-2/0
Dimension - Length Overall inch
1.47 in
Dimension - L Length Overall mm
37 mm
Conductor - Copper Str Size Range
14-2/0
Conductor - Copper Str Size
14;5;4;3;2;1;1/0;2/0
Conductor - Nominal Diameter
0.184, 0.184, 0.206, 0.232, 0.232, 0.260, 0.260, 0.292, 0.320, 0.328, 0.360, 0.368, 0.390, 0.414, 0.438
Dimension - Hole Size mm
7 mm
Dimension - N inch
0.45 in
Dimension - Stud Size inch
44930
For Minimum Wire Size
6 AWG
For Maximum Wire Size
2/0 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 1/4 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.27 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.81 in, Tongue Width 0.64 in, Tongue Thickness 0.19 in, Connector Type Lug
