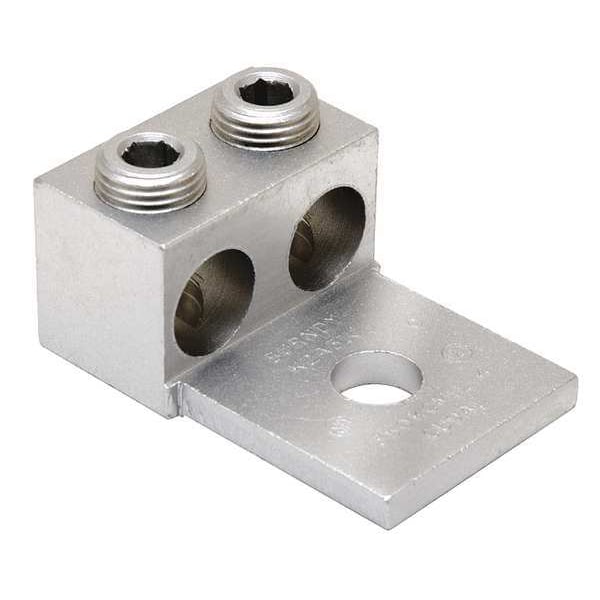

Mechanical Lug, 350 kcmil Max, 2 Conductor, 1 Hole, 1/2 in Stud, Aluminum
Mfr # K2A31U
Zoro # G4703483
CAD Available
product price: $21.59
/eaKey Features
CAD Drawing
No. of Conductors
2
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
350 kcmil Stranded
Number of Holes
1
Stud Size
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
K2A31U
Zoro #
G4703483
UPC #
781810559284
Country of Origin
United States
Dimensions
Min. Conductor Size
6 AWG Stranded
Max. Conductor Size
350 kcmil Stranded
Stud Size
1/2 in
Length
2.88 in
Width
1.94 in
Length (Straight Wireway)
2.88 in
Overall Depth
1 15/16 in
For Stranded Copper Wire Size - Minimum
6 AWG
Tongue Length
1.69 in
Overall Width
1.26 in
Tongue Width
1.94 in
For Stud Size
1/2 in
For Stranded Copper Wire Size - Maximum
350 kcmil
Tongue Thickness
0.25 in
Overall Length
2.88 in
Hole Diameter
0.56 in
Conductor Size
6 AWG-350 KCMIL
Dimension - N inch
0.88 in
Dimension - Width fraction
1-47/50 in
Dimension - Screw Size inch
44993
Conductor - AL Str Size Range
6 Str.- 350 Kcmil
Conductor - AL Str Size
6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
Dimension - Hole Size inch
0.56 in
Dimension - Width mm
49 mm
Conductor - Copper Str Size Range
6 Str.- 350 Kcmil
Dimension - Bolt Size fraction
1 to 2
Dimension - Hole Size mm
14 mm
Dimension - Height inch
1.26 in
Dimension - Bolt Hole Size inch
0.50 in
Conductor - Copper Str Size
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
Dimension - D inch
1.69 in
Dimension - L Length Overall mm
73 mm
Dimension - Stud Size inch
1/2 in
Dimension - Width inch
1.94 in
Dimension - Length Overall inch
2.88 in
Dimension - Pad Width inch
1.94 in
Dimension - Height fraction
1.25 in
For Maximum Wire Size
350 kcmil
For Minimum Wire Size
6 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 1/2 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.56 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 1.69 in, Tongue Width 1.94 in, Tongue Thickness 0.25 in
