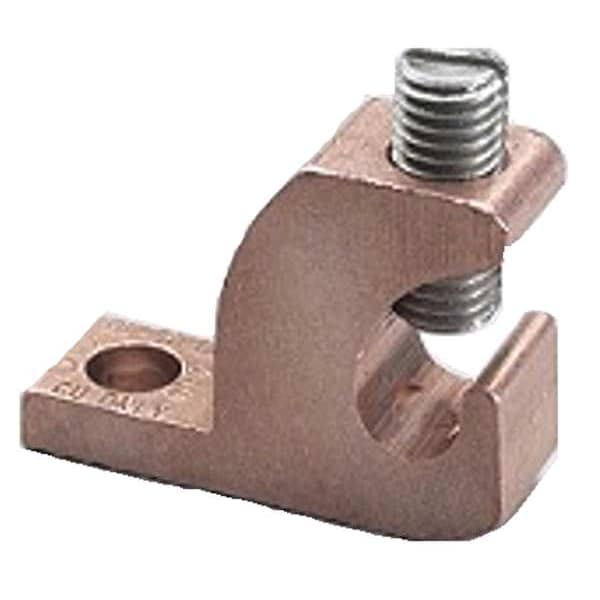

Burndy Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper CL501 - main

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper

  • Mfr # CL501

  • Zoro # G4668991

product price: $70.79
/pk 10, $7.08/ea

Key Features

No. of Conductors
1
Min. Conductor Size
14 AWG Stranded/Solid
Max. Conductor Size
4 AWG Solid/Stranded
Number of Holes
1
Stud Size
#10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CL501
Zoro #
G4668991
UPC #
781810558485
Country of Origin
Canada

Dimensions

Min. Conductor Size
14 AWG Stranded/Solid
Max. Conductor Size
4 AWG Solid/Stranded
Stud Size
#10
Length
1.13 in
Width
0.85 in
Length (Straight Wireway)
1.13 in
For Stud Size
#10
Tongue Width
0.38 in
Tongue Length
0.47 in
Tongue Thickness
0.15 in
Hole Diameter
0.22 in
Overall Length
1.13 in
Overall Width
0.85 in
Overall Depth
3/8 in
For Stranded Copper Wire Size - Maximum
4 AWG
For Stranded Copper Wire Size - Minimum
14 AWG
Dimension - Width inch
0.38 in
Dimension - Hole Size inch
0.22 in
Dimension - Stud Size inch
17/64
Dimension - Length Overall inch
1.13 in
Dimension - D inch
0.47 in
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - N inch
0.19 in
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - Width mm
10 mm
Dimension - L Length Overall mm
29 mm
Dimension - Hole Size mm
6 mm
Conductor - Copper Solid Size Range
14 AWG-4 AWG
Dimension - Height inch
0.85 in
Conductor - Copper Str Size Range
14 AWG-4 AWG
For Maximum Wire Size
4 AWG
For Minimum Wire Size
14 AWG

Details

Item
Mechanical Lug
No. of Conductors
1
Number of Holes
1
Material
Copper
Standards
cULus Listed, UL Listed
No. of Holes
1
Screw Material
Stainless Steel
Body Material
Copper
Head Style
Slotted
For Conductor Material
Copper
Number of Conductors
1
Special Features
Direct Burial Applications In Earth Or Concrete, Open Faced Design
Contact Finish
Unplated
Compatible with Product Type
Grounding Equipments
Type
Open-Faced
Application
For Direct Burial Applications In Concrete Or Earth, For Fast Lay-In Of The Conductor Without The Need For Cutting Or Breaking
Plated
N
Certification - UL Listed Direct Burial
Yes
Industry Standard(s)
UL467
UL Listed
Yes
Material - Hardware
Stainless Steel
Conductor Type
CU C Str-Size
Plating Type
Unplated
Certification - CSA Approved
No
Certification - cULus
Yes
Trade Name
QIKLUGâ„¢
Connector Type
Lay-In Lug

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Diameter 0.22 in, Hole Spacing Not Applicable, Body Material Copper, Number of Conductors 1, Tongue Length 0.47 in, Tongue Width 0.38 in, Tongue Thickness 0.15 in, Connector Type Lay-In Lug, Standards cULus Listed, UL Listed, Compatible with Product Type Grounding Equipments
