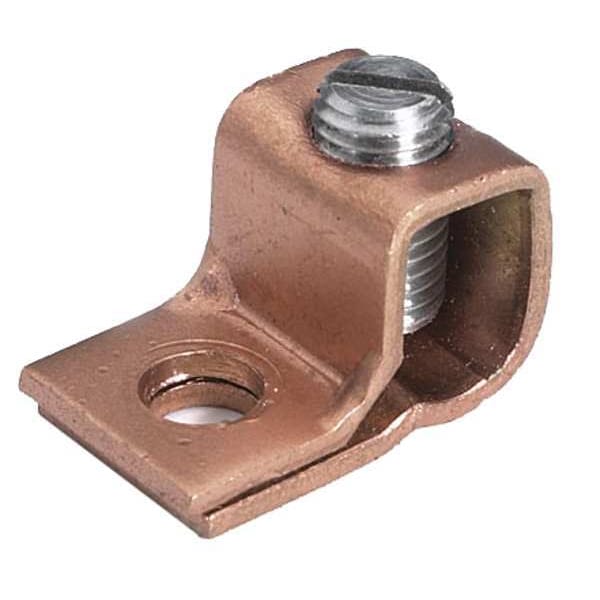

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper
Mfr # KPB4CG1
Zoro # G4663093
product price: $54.89
/pk 5, $10.98/eaKey Features
No. of Conductors
1
Min. Conductor Size
10 AWG Stranded/Solid
Max. Conductor Size
4 AWG Solid and Stranded
Number of Holes
1
Stud Size
#10
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KPB4CG1
Zoro #
G4663093
UPC #
781810558225
Country of Origin
United States
Dimensions
Min. Conductor Size
10 AWG Stranded/Solid
Max. Conductor Size
4 AWG Solid and Stranded
Stud Size
#10
Length
1.0 in
Width
0.99 in
Length (Straight Wireway)
1.0 in
For Stranded Copper Wire Size - Minimum
10 AWG
Overall Width
0.95 in
For Stranded Copper Wire Size - Maximum
4 AWG
Overall Length
0.93 in
Overall Depth
5/8 in
Tongue Width
0.61 in
For Stud Size
#10
Conductor - Copper Solid Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - B Length inch
0.61 in
Conductor - Copper Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - Height inch
0.95 in
Dimension - Width inch
0.99 in
Dimension - Width fraction
1 in
For Maximum Wire Size
4 AWG
For Minimum Wire Size
10 AWG
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Spacing Not Applicable, Body Material Copper, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.61 in, Connector Type Ground Terminal Connector, Standards UL Listed, Compatible with Product Type Grounding Equipments, Contact Finish Tin
