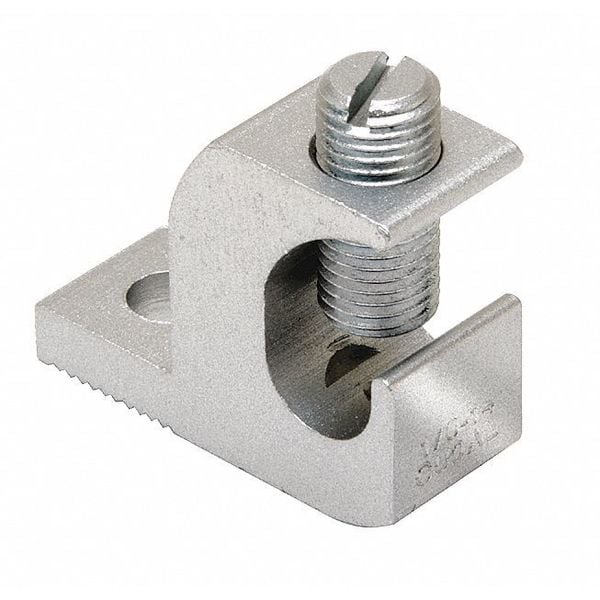

Mechanical Lug, 4 AWG Max, 1 Conductor, 1/4 in Stud, Aluminum
Mfr # BGBL4
Zoro # G4667801
CAD Available
product price: $16.89
/pk 5, $3.38/eaKey Features
CAD Drawing
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
Number of Conductors
1
For Stud Size
1/4 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BGBL4
Zoro #
G4667801
UPC #
781810558935
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
For Stud Size
1/4 in
Hole Diameter
0.22 in
Tongue Width
0.39 in
Min. Conductor Size
14 AWG Stranded/Solid
Width
0.78 in
Length
1.07 in
Stud Size
1/4 in
Max. Conductor Size
4 AWG Stranded/Solid
Length (Straight Wireway)
1.07 in
Tongue Length
0.62 in
Overall Depth
3/8 in
Tongue Thickness
0.13 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Length
1.07 in
For Stranded Copper Wire Size - Maximum
4 AWG
Overall Width
0.78 in
Dimension - N inch
0.19 in
Dimension - Length Overall inch
1.07 in
Dimension - Height fraction
7/9 in
Conductor - Copper Str Size Range
14 AWG-4 AWG
Dimension - Pad Width inch
0.38 in
Conductor - AL Str Size
8 AWG;6 AWG;4 AWG
Dimension - Hole Size mm
6 mm
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Conductor - Copper Solid Size Range
14 AWG-4 AWG
Dimension - Height inch
0.78 in
Dimension - Hole Size inch
0.22 in
Hex Size
Slot
Dimension - D inch
0.62 in
Dimension - L Length Overall mm
27 mm
Conductor - AL Str Size Range
8 AWG-4 AWG
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.22 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Tongue Length 0.62 in, Tongue Width 0.39 in, Tongue Thickness 0.13 in, Connector Type Lay-In Lug, Standards CSA Certified, UL Listed
