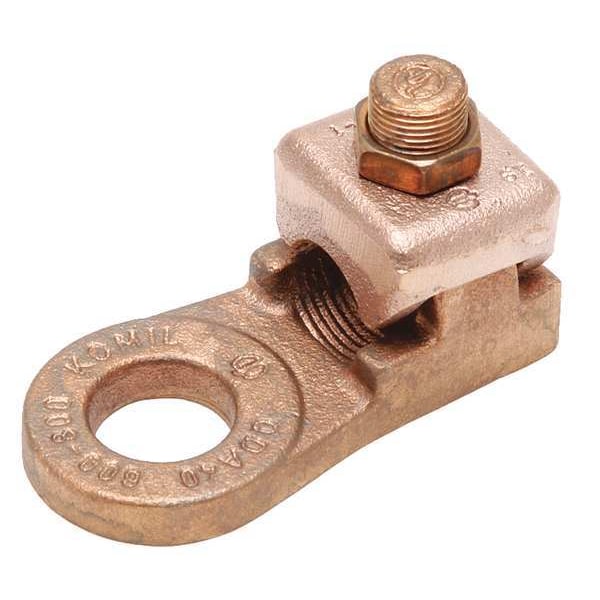

Mechanical Lug, 4 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
Mfr # QDA4C
Zoro # G4674442
product price: $48.19
/eaKey Features
For Conductor Material
Copper
For Minimum Wire Size
8 AWG
For Maximum Wire Size
4 AWG
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
QDA4C
Zoro #
G4674442
UPC #
781810553862
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
8 AWG
For Maximum Wire Size
4 AWG
For Stud Size
3/8 in
Hole Diameter
0.44 in
Tongue Width
1 in
Length
1.88 in
Stud Size
3/8 in
Max. Conductor Size
4 AWG Stranded
Min. Conductor Size
8 AWG Stranded
Width
0.72 in
Length (Straight Wireway)
1.88 in
For Stranded Copper Wire Size - Maximum
4 AWG
Overall Depth
1 in
For Stranded Copper Wire Size - Minimum
8 AWG
Overall Width
0.72 in
Overall Length
1.88 in
Tongue Thickness
0.22 in
Conductor Size
8-4 AWG
Conductor - Copper Str Size Range
8 AWG-4 AWG
Dimension - Width inch
1.00 in
Dimension - Hole Size fraction
45123
Dimension - Stud Size inch
44993
Dimension - Length Overall inch
1.88 in
Dimension - Width mm
25 mm
Dimension - Height inch
0.72 in
Dimension - Pad Width inch
1.00 in
Dimension - L Length Overall mm
48 mm
Dimension - Hole Size inch
0.44 in
Dimension - Hole Size mm
11 mm
Conductor - Copper Str Navy Size
23 (7) Navy;30 (19) Navy;40 (19) Navy
Dimension - Height fraction
44989
Dimension - Cross Flats inch
0.56 in
Conductor - Copper Str Navy Size Range
23 (7) Navy-40 (19) Navy
Conductor - Copper Str Size
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Dimension - Bolt Size fraction
2023-03-08
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 8 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.44 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1 in, Tongue Thickness 0.22 in, Connector Type Terminal
