  11. Male Disconnect, Blue, 16-14AWG, PK10

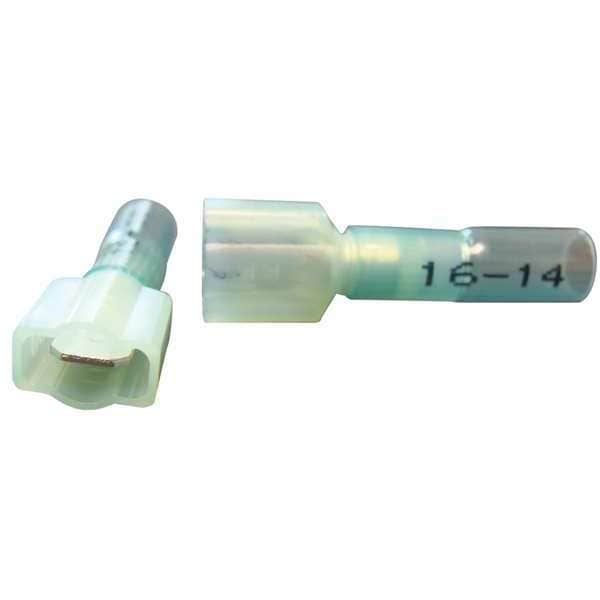

Velvac Male Disconnect, Blue, 16-14AWG, PK10 37387 - main

Male Disconnect, Blue, 16-14AWG, PK10

  • Mfr # 37387

  • Zoro # G5367372

product price: $8.79
/pk 10, $0.88/ea

Key Features

Insulation
Full
Insulation Color
Blue
Connection Type
Crimp
Wire Range
16 to 14 AWG
Insulation Type
Heat Shrink
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
37387
Zoro #
G5367372
UPC #
728974160673
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
1.55 in
Barrel Inside Dia.
0.097 in
Maximum Wire Size
14 AWG
Tab Thickness
0.032 in
Tab Width
0.25 in
Barrel Inside Diameter
0.097 in
Minimum Wire Size
16 AWG

Details

Item
Male Disconnect
Insulation
Full
Insulation Color
Blue
Connection Type
Crimp
Wire Range
16 to 14 AWG
Insulation Type
Heat Shrink
Seam
Brazed
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Connection Material
Copper
Standards
UL Listed
Maximum Voltage
600 V
Termination Style
Crimp
Barrel Style
Funnel Entry
Maximum Operating Temperature
221 Degrees F
Insulation Material
Nylon/Polyolefin
Contact Material
Copper
Disconnect Style
Tab
Insulation Coverage
Full Coverage
Seam Style
Butted
Minimum Operating Temperature
-40 Degrees F
Contact Finish
Tin
Special Features
Adhesive Lining Which Blocks Out Water, Adds Tensile Strength and Strain Relief, CNS Extreme Waterproof Wire Terminals are Designed to Perform in the Harshest Environments, It Has a Triple Layer of Protection Around a 99.9% Copper Connector for Maximum Strength and Conductivity, Polyolefin Shrink Tubing Which Allows a Complete Environment and An Abrasion Resistant Seal
RoHS Compliant
Yes
Terminal Type
Tab

Description

Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon with Heat Shrink, Maximum Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards UL Listed, Barrel Inside Diameter 0.097 in
