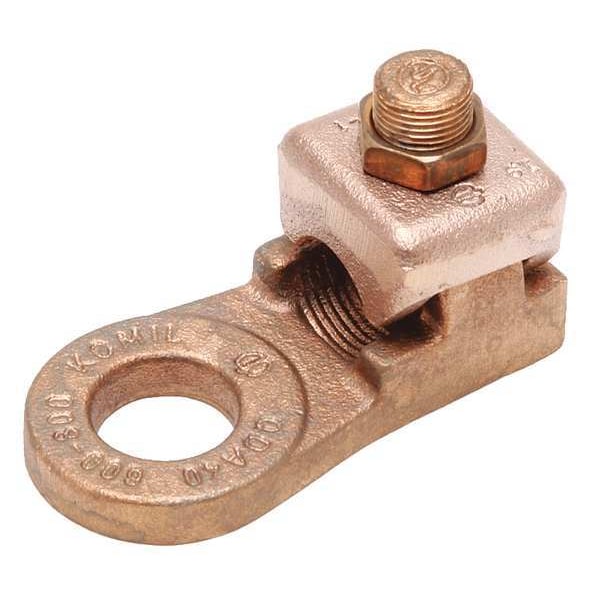

Mechanical Lug, 4/0 AWG Max, 1 Conductor, 1 Hole, 1/2 in Stud, Copper
Mfr # QDA28
Zoro # G4690025
product price: $123.99
/ea
Sold in multiples of 10 for $1,239.90
Free Shipping & Returns
Key Features
For Conductor Material
Copper
For Minimum Wire Size
3/0 AWG
For Maximum Wire Size
4/0 AWG
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
QDA28
Zoro #
G4690025
UPC #
781810553794
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
3/0 AWG
For Maximum Wire Size
4/0 AWG
For Stud Size
1/2 in
Hole Diameter
0.56 in
Tongue Width
1.25 in
Stud Size
1/2 in
Min. Conductor Size
3/0 AWG Stranded
Max. Conductor Size
4/0 AWG Stranded
Length
2.63 in
Width
1.31 in
Length (Straight Wireway)
2.63 in
Overall Length
2.63 in
For Stranded Copper Wire Size - Minimum
3/0 AWG
Overall Depth
1 1/4 in
Tongue Thickness
0.31 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Overall Width
1.31 in
Conductor Size
3/0-4/0 AWG
Dimension - Width mm
32 mm
Dimension - Hole Size inch
0.56 in
Dimension - Height fraction
42374
Conductor - Copper Str Size
3/0 AWG;4/0 AWG
Dimension - Length Overall inch
2.63 in
Dimension - Hole Size fraction
45185
Dimension - Width inch
1.25 in
Dimension - Height inch
1.31 in
Dimension - Hole Size mm
14 mm
Conductor - Copper Str Navy Size Range
150 (61) Navy-200 (61) Navy
Dimension - Pad Width inch
1.25 in
Conductor - Copper Str Size Range
3/0 AWG-4/0 AWG
Dimension - Stud Size inch
44928
Conductor - Copper Str Navy Size
150 (61) Navy;200 (61) Navy
Dimension - L Length Overall mm
67 mm
Dimension - Bolt Size fraction
1 to 2
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 1/2 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.56 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.25 in, Tongue Thickness 0.31 in
