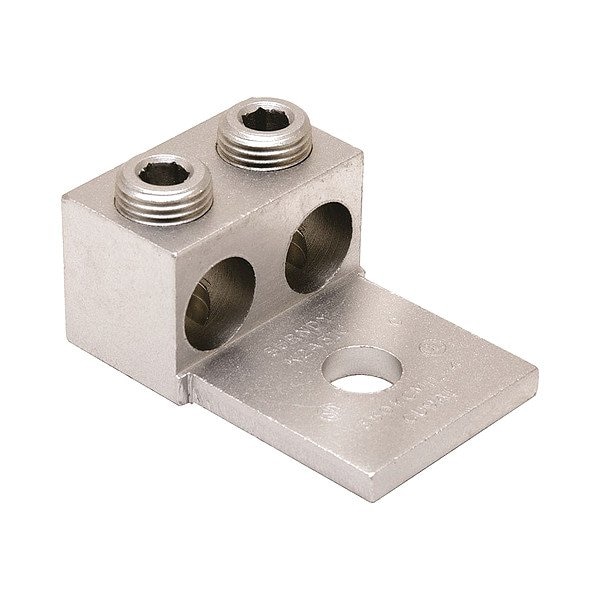

Mechanical Connector, 2 Conductor, 5/8 in Stud, Aluminum
- Mfr # K2A40U
- Zoro # G416557744
product price:Â
$
60.25
/ea
Key Features
Connector Type
Set Screw
For Conductor Material
Aluminum, Copper
Number of Conductors
2
Number of Terminations
2
Number of Holes
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- K2A40U
- Zoro #
- G416557744
- UPC #
- 781810600252
- Country of Origin
- United States
- Item
- Mechanical Connector
- Connector Type
- Set Screw
- For Conductor Material
- Aluminum, Copper
- Number of Conductors
- 2
- Number of Terminations
- 2
- Number of Holes
- 1
- Body Material
- Aluminum
- Contact Finish
- Tin Plated
- Maximum Operating Temperature
- 194 Degrees F
- Standards
- ARRA Compliant, CSA Certified, UL Listed
- Torque
- 550 in-lb
- Special Features
- Provide Low Contact Resistance
- RoHS Compliant
- Yes
- Head Style
- Slotted
- Screw Material
- Aluminum
- Compatible with Product Type
- Aluminum Conductor, Copper Conductor
- Screw Finish
- Tin Plated
Dimensions
- For Stud Size
- 5/8 in
- Hole Diameter
- 0.66 in
- Tongue Width
- 3.2 in
- Overall Width
- 3.2 in
- Overall Length
- 3.38 in
- For Stranded Copper Wire Size - Maximum
- 800 kcmil
- For Stranded Copper Wire Size - Minimum
- 300 kcmil
- Overall Depth
- 1 15/16 in
- Wire Rope Length
- 3.38 in
- Length
- 3.38 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 800 kcmil, For Stud Size 5/8 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.66 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Number of Conductors 2, Number of Terminations 2, Tongue Width 3.2 in, Connector Type Set Screw, Standards ARRA Compliant, CSA Certified, UL Listed
