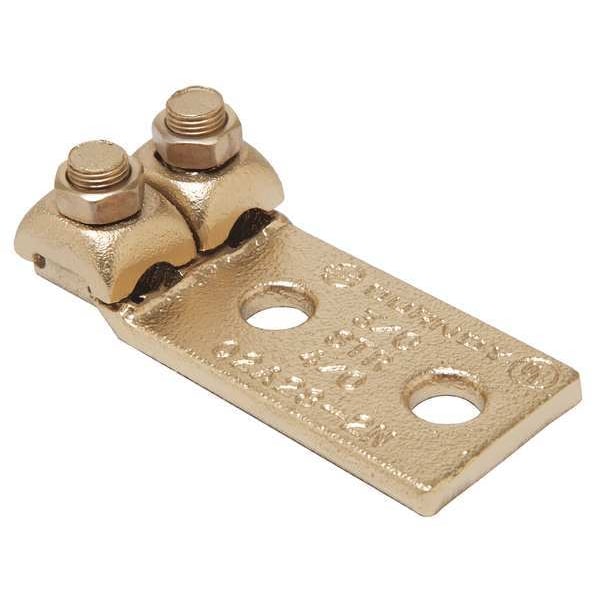

Mechanical Lug, 4/0 AWG Max, 2 Conductor, 2 Hole, 1/2 in Stud, Copper

  • Mfr # Q2A282N

  • Zoro # G4676305

product price:  $258.99
/ea
Free Shipping & Returns

Key Features

For Conductor Material
Copper
For Minimum Wire Size
3/0 AWG
For Maximum Wire Size
4/0 AWG
Number of Conductors
2
Number of Terminations
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Q2A282N
Zoro #
G4676305
UPC #
781810553930
Country of Origin
Mexico

Dimensions

For Minimum Wire Size
3/0 AWG
For Maximum Wire Size
4/0 AWG
For Stud Size
1/2 in
Hole Diameter
0.56 in
Tongue Width
1.88 in
Width
1.94 in
Max. Conductor Size
4/0 AWG Stranded
Min. Conductor Size
3/0 AWG Stranded
Length
4.38 in
Stud Size
1/2 in
Length (Straight Wireway)
4.38 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Overall Width
1.31 in
Overall Length
4.31 in
Tongue Thickness
0.25 in
Overall Depth
2 1/8 in
For Stranded Copper Wire Size - Minimum
3/0 AWG
Tongue Length
3.09 in
Conductor Size
3/0-4/0 AWG
Dimension - B Length inch
1.06 in
Dimension - D inch
3.09 in
Dimension - Height fraction
1-3/8 in
Dimension - Hole Size inch
0.56 in
Dimension - Stud Size inch
44928
Dimension - Length Overall inch
4.31 in
Dimension - L Length Overall mm
111 mm
Dimension - N inch
0.63 in
Dimension - Pad Width inch
2.12 in
Conductor - Copper Str Size
3/0 AWG;4/0 AWG
Dimension - Width mm
54 mm
Dimension - Hole Size mm
14 mm
Dimension - Hole Size fraction
45185
Dimension - Width inch
2.12 in
Dimension - Width fraction
1-15/16 in
Dimension - F Width Center to Center inch
0.69 in
Conductor - Copper Str Size Range
3/0 AWG-4/0 AWG
Dimension - Bolt Size fraction
1 to 2
Dimension - Height inch
1.31 in
Wire Rope Length
4.31 in

Details

Item
Mechanical Lug
For Conductor Material
Copper
Number of Conductors
2
Number of Terminations
2
Number of Holes
2
Body Material
Copper
Contact Finish
Unplated
Maximum Voltage
600 V
Maximum Operating Temperature
194 Degrees F
Standards
UL Listed
Material
Copper
No. of Conductors
2
Head Style
Hex
Compatible with Product Type
Copper Cable
Special Features
Accommodates a Wide Range of Cable
Hole Spacing
0.69 in
Torque
250 in-lb
Type
Bolted Lugs & Terminals
Trade Name
QIKLUGâ„¢
Temperature Rating
194
Conductor Type
CU C Str-Size
Certification - UL Listed Direct Burial
No
UL Listed
Yes
Physical Attribute - Screw Type
Hexagonal Bolt
Industry Standard(s)
UL468A-468B
Physical Attribute - Number of Holes
2
Installation Torque Recommended in-lb
250 LBS/in
Plating Type
Unplated
Rating - Minimum Voltage
600
Plated
N
Physical Attribute - Number of Screws
2
Certification - CSA Approved
No
Application
For Copper Cable
Connector Type
Terminal
Connection Orientation
Compact

Description

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, For Stud Size 1/2 in, Head Style Hex, Number of Holes 2, Hole Diameter 0.56 in, Hole Spacing 0.69 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 2, Number of Terminations 2, Tongue Length 3.09 in, Tongue Width 1.88 in, Tongue Thickness 0.25 in, Connector Type Terminal
