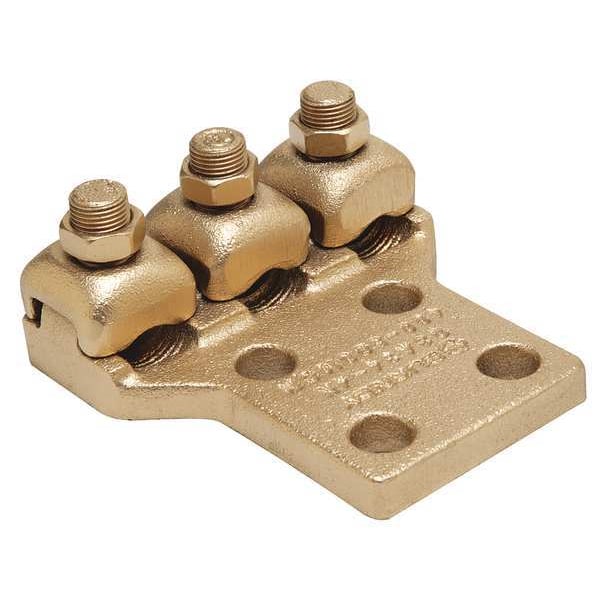

Mechanical Lug, 500 kcmil Max, 3 Conductor, 4 Hole, 1/2 in Stud, Copper
Mfr # Q3A344N
Zoro # G4693972
product price: $607.99
/ea
Free Shipping & Returns
Key Features
For Conductor Material
Copper
For Minimum Wire Size
400 kcmil
For Maximum Wire Size
500 kcmil
Number of Conductors
3
Number of Terminations
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Q3A344N
Zoro #
G4693972
UPC #
781810553749
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
400 kcmil
For Maximum Wire Size
500 kcmil
For Stud Size
1/2 in
Hole Diameter
0.56 in
Tongue Width
3 in
Max. Conductor Size
500 kcmil Stranded
Length
4.69 in
Stud Size
1/2 in
Min. Conductor Size
400 kcmil Stranded
Width
4.56 in
Length (Straight Wireway)
4.69 in
Tongue Length
3.13 in
For Stranded Copper Wire Size - Maximum
500 kcmil
Overall Width
2 in
For Stranded Copper Wire Size - Minimum
400 kcmil
Tongue Thickness
0.38 in
Overall Depth
3 in
Overall Length
4.69 in
Conductor Size
400-500 kcmil
Dimension - N inch
0.63 in
Dimension - Height fraction
42384
Dimension - Height inch
2.00 in
Dimension - Bolt Size fraction
1 to 2
Dimension - Pad Width inch
3.00 in
Dimension - Hole Size mm
14 mm
Dimension - Width mm
116 mm
Conductor - Copper Str Size Range
400 Kcmil-500 Kcmil
Dimension - Width fraction
4-9/16 in
Conductor - Copper Str Size
400 Kcmil;500 Kcmil
Dimension - Hole Size fraction
45185
Dimension - Hole Size inch
0.56 in
Dimension - L Length Overall mm
119 mm
Dimension - F Width Center to Center inch
1.75 in
Dimension - Stud Size inch
44928
Dimension - Length Overall inch
4.69 in
Dimension - Width inch
4.56 in
Dimension - D inch
3.13 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 1/2 in, Head Style Hex Head, Number of Holes 4, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 3, Number of Terminations 3, Tongue Length 3.13 in, Tongue Width 3 in, Tongue Thickness 0.38 in, Connector Type Terminal
