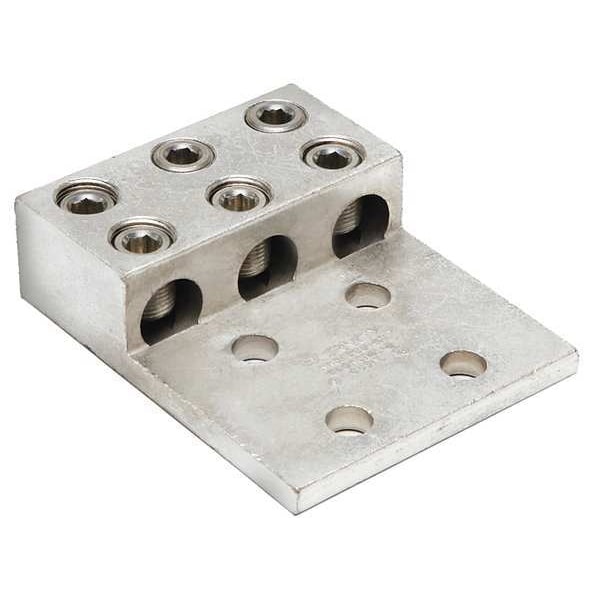

Mechanical Lug, 600 kcmil Max, 3 Conductor, 4 Hole, 1/2 in Stud, Aluminum
Mfr # KK3A36U4N
Zoro # G4670723
product price:Â $148.99
/ea
Free Shipping & Returns
Key Features
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
2 AWG
For Maximum Wire Size
600 kcmil
Number of Conductors
3
Number of Terminations
6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KK3A36U4N
- Zoro #
- G4670723
- UPC #
- 781810559383
- Country of Origin
- United States
Dimensions
- For Minimum Wire Size
- 2 AWG
- For Maximum Wire Size
- 600 kcmil
- For Stud Size
- 1/2 in
- Hole Diameter
- 0.56 in
- Tongue Width
- 4.22 in
- Max. Conductor Size
- 600 kcmil Stranded
- Width
- 4.22 in
- Stud Size
- 1/2 in
- Min. Conductor Size
- 2 AWG Stranded
- Length
- 5.5 in
- Length (Straight Wireway)
- 5.5 in
- Overall Depth
- 4 1/4 in
- Tongue Thickness
- 0.38 in
- Overall Length
- 5.5 in
- For Stranded Copper Wire Size - Minimum
- 2 AWG
- Tongue Length
- 3 in
- For Stranded Copper Wire Size - Maximum
- 600 kcmil
- Overall Width
- 1.52 in
- Conductor Size
- 2 AWG-600 KCMIL
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size fraction
- 45185
- Dimension - Pad Width inch
- 4.22 in
- Dimension - N inch
- 0.63 in
- Dimension - Height inch
- 1.52 in
- Dimension - Length Overall inch
- 5.50 in
- Conductor - AL Str Size
- 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Conductor - AL Str Size Range
- 2 Str. - 600 Kcmil
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - F Width Center to Center inch
- 1.75 in
- Conductor - Copper Str Size Range
- 2 Str. - 600 Kcmil
- Dimension - Hole Size mm
- 14 mm
- Dimension - L Length Overall mm
- 140 mm
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - Stud Size inch
- 0.56 in
- Wire Rope Length
- 5.5 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 4, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 3, Number of Terminations 6, Tongue Length 3 in, Tongue Width 4.22 in, Tongue Thickness 0.38 in
