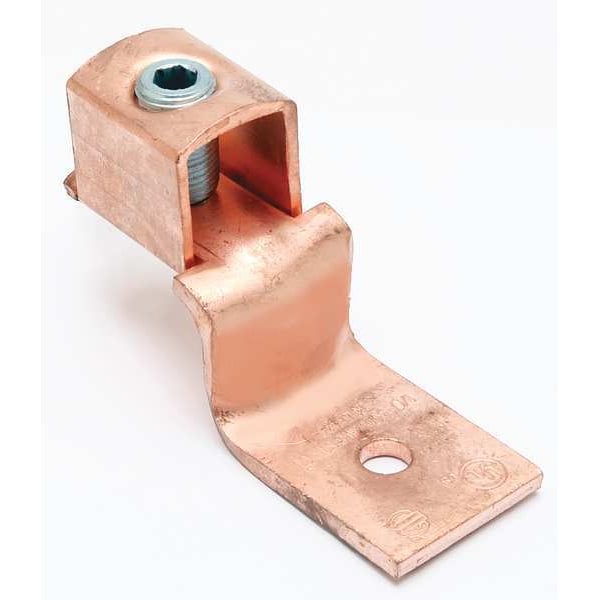

Mechanical Lug, 6 AWG Max, 1 Conductor, 1 Hole, #10 Stud, Copper
Mfr # KLU35
Zoro # G4694952
product price:Â $2.19
/eaKey Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
6 AWG
Number of Conductors
1
Number of Terminations
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KLU35
- Zoro #
- G4694952
- UPC #
- 781810554173
- Country of Origin
- India
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 6 AWG
- For Stud Size
- #10
- Hole Diameter
- 0.20 in
- Tongue Width
- 0.38 in
- Length
- 1.24 in
- Stud Size
- #10
- Width
- 0.43 in
- Min. Conductor Size
- 14 AWG Stranded/Solid
- Max. Conductor Size
- 6 AWG Stranded/Solid
- Length (Straight Wireway)
- 1.24 in
- Overall Length
- 1.24 in
- Overall Width
- 0.43 in
- For Stranded Copper Wire Size - Minimum
- 14 AWG
- Overall Depth
- 3/8 in
- For Stranded Copper Wire Size - Maximum
- 6 AWG
- Tongue Thickness
- 0.07 in
- Strip Length
- 5/8 in
- Conductor Size
- 14-6 AWG
- Dimension - Screw Size inch
- 44930
- Dimension - Hole Size inch
- 0.20 in
- Dimension - N inch
- 0.22 in
- Dimension - B Length inch
- 0.43 in
- Conductor - Copper Solid Size
- 14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
- Dimension - B Length fraction
- 7/16 in
- Conductor - Copper Str Size Range
- 14 AWG-6 AWG
- Dimension - Bolt Size fraction
- #10
- Dimension - Stud Size inch
- #10
- Conductor - Copper Solid Size Range
- 14 AWG-6 AWG
- Dimension - Strip Length inch
- 45054
- Dimension - Length Overall inch
- 1.24 in
- Dimension - Pad Width inch
- 0.39 in
- Dimension - Hole Size mm
- 5 mm
- Dimension - L Length Overall mm
- 31 mm
- Conductor - Copper Str Size
- 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
- Wire Rope Length
- 1.24 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size #10, Head Style Slotted, Number of Holes 1, Hole Diameter 0.2 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.38 in, Tongue Thickness 0.07 in, Connector Type Terminal
