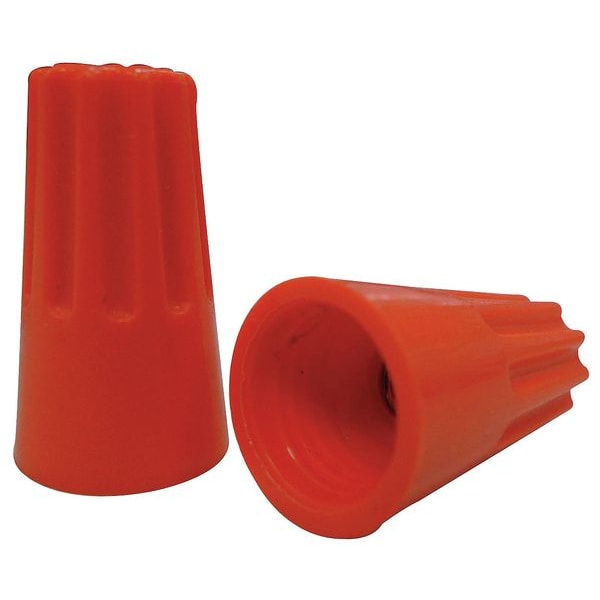

Twist-On Wire Connector, 14 AWG Max, Orange, Thermoplastic Insulation, 600 V, 100 PK

  • Mfr # 5UYJ4

  • Zoro # G1041476

product price:  $12.79
/pk 100, $0.13/ea

Key Features

Type
Twist-On
Color
Orange
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(1) 18 AWG with (1) 20 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UYJ4
Zoro #
G1041476
UPC #
190735599808
Country of Origin
China

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Height
1.01 in
Width
0.48 in
Outside Diameter
0.38 in
Overall Width
0.5 in
Strip Length
5/16 in
Minimum Single Wire Size
22 AWG
Overall Height
0.87 in
Maximum Single Wire Size
14 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Orange
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(1) 18 AWG with (1) 20 AWG
Maximum Wire Combination
(4) 16 AWG with (1) 20 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Application
General Purpose
Wire Connector Style
Standard
Series
P3
Standards
CSA Certified: 175604UL Listed: E113650
For Conductor Material
Copper
Compatible with Product Type
Light Fixtures and House Wiring
Maximum Conductors
5
Compatible Installation Tool Model Number
No. 3
Special Features
Deep Skirt Protects against Flash-Over, Square-Wire Spring Creates Secure Connections
Material
Steel
Finish
Zinc Plated
Termination Style
Twist-On
Contact Finish
Zinc
Contact Material
Steel

Description

Twist-On Wire Connectors, Color Orange, For Conductor Material Copper, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (1) 18 AWG with (1) 20 AWG, Maximum Wire Combination (4) 16 AWG with (1) 20 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified: 175604UL Listed: E113650, Wire Connector Style Standard, Compatible Installation Tool Model Number No. 3
