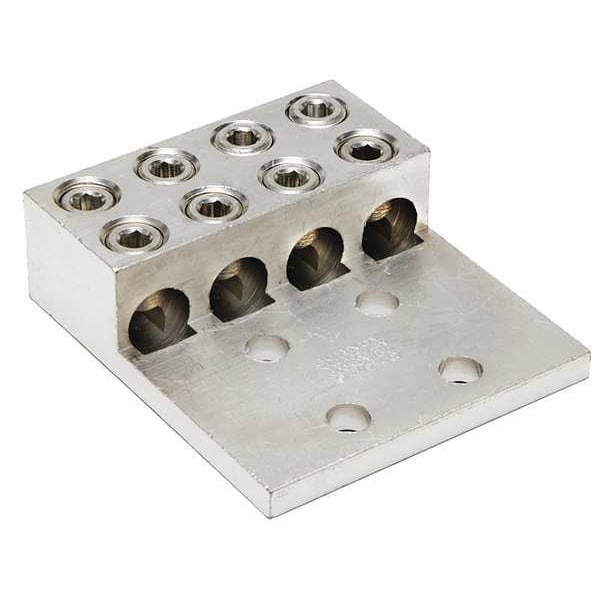

Mechanical Lug, 600 kcmil Max, 4 Conductor, 4 Hole, 1/2 in Stud, Aluminum
Mfr # KK4A36U4N
Zoro # G4682501
CAD Available
product price: $182.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
No. of Conductors
4
Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
600 kcmil Stranded
Number of Holes
4
Stud Size
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KK4A36U4N
Zoro #
G4682501
UPC #
781810559390
Country of Origin
United States
Dimensions
Min. Conductor Size
2 AWG Stranded
Max. Conductor Size
600 kcmil Stranded
Stud Size
1/2 in
Length
5.63 in
Width
5.0 in
Length (Straight Wireway)
5.63 in
Tongue Length
3.34 in
For Stranded Copper Wire Size - Maximum
600 kcmil
Overall Depth
5 1/16 in
Overall Width
1.51 in
Tongue Thickness
0.44 in
Overall Length
5.63 in
For Stud Size
1/2 in
Tongue Width
5 in
Hole Diameter
0.56 in
For Stranded Copper Wire Size - Minimum
2 AWG
Conductor Size
2 AWG-600 KCMIL
Dimension - Pad Width inch
5.04 in
Conductor - AL Str Size
2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
Conductor - Copper Str Size Range
2 Str. - 600 Kcmil
Dimension - L Length Overall mm
143 mm
Dimension - Hole Size mm
14 mm
Dimension - Hole Size inch
0.56 in
Dimension - Length Overall inch
5.63 in
Dimension - Bolt Hole Size inch
0.56 in
Conductor - AL Str Size Range
2 Str. - 600 Kcmil
Dimension - E Spacing between Holes fraction
1-3/4 in
Dimension - Height inch
1.51 in
Dimension - Bolt Size fraction
1 to 2
Dimension - F Width Center to Center inch
1.75 in
Dimension - Stud Size inch
0.56 in
Dimension - N inch
0.63 in
For Maximum Wire Size
600 kcmil
For Minimum Wire Size
2 AWG
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 4, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 4, Number of Terminations 8, Tongue Length 3.34 in, Tongue Width 5 in, Tongue Thickness 0.44 in
