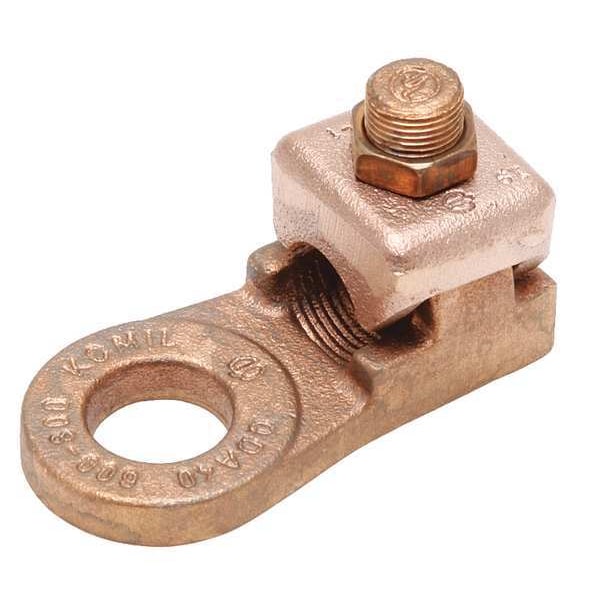

Mechanical Lug, 8 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
Mfr # QDA8C
Zoro # G4701575
product price: $40.75
/eaKey Features
For Conductor Material
Copper
For Minimum Wire Size
14 AWG
For Maximum Wire Size
8 AWG
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
QDA8C
Zoro #
G4701575
UPC #
781810553954
Country of Origin
Mexico
Dimensions
For Minimum Wire Size
14 AWG
For Maximum Wire Size
8 AWG
For Stud Size
3/8 in
Hole Diameter
0.44 in
Tongue Width
1 in
Stud Size
3/8 in
Width
0.69 in
Max. Conductor Size
8 AWG Stranded/Solid
Min. Conductor Size
14 AWG Stranded/Solid
Length
1.88 in
Length (Straight Wireway)
1.88 in
For Stranded Copper Wire Size - Maximum
8 AWG
Tongue Thickness
0.19 in
Overall Depth
1 in
Overall Width
0.69 in
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Length
1.88 in
Conductor Size
14-8 AWG
Dimension - Hole Size mm
11 mm
Dimension - Pad Width inch
1.00 in
Conductor - Copper Solid Size Range
14 AWG-8 AWG
Conductor - Copper Str Navy Size
4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy;14 (7) Navy;14 (140) Navy
Dimension - Height inch
0.69 in
Dimension - Bolt Size fraction
2023-03-08
Dimension - Length Overall inch
1.88 in
Conductor - Copper Str Size Range
14 AWG-8 AWG
Dimension - L Length Overall mm
48 mm
Dimension - Cross Flats inch
0.56 in
Dimension - Hole Size inch
0.44 in
Dimension - Height fraction
45246
Conductor - Copper Str Navy Size Range
4 (1) Navy-14 (140) Navy
Dimension - Stud Size inch
44993
Dimension - Width inch
1.00 in
Dimension - Width mm
25 mm
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG
Dimension - Hole Size fraction
45123
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.44 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1 in, Tongue Thickness 0.19 in, Connector Type Terminal
