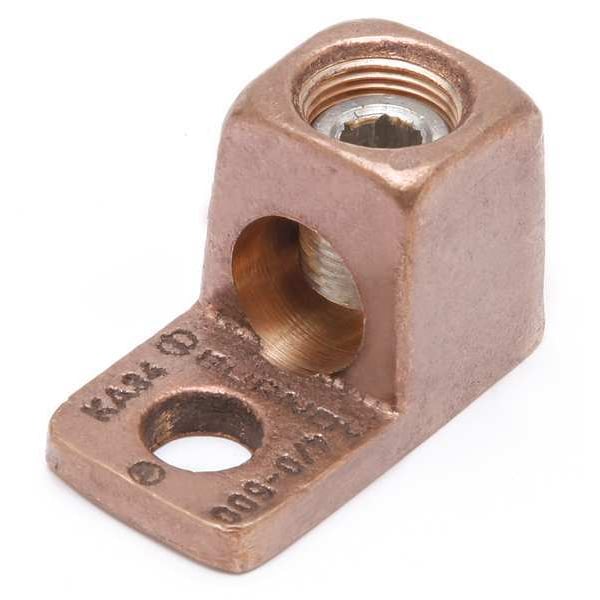

Mechanical Lug, 8 AWG Max, 1 Conductor, #10 Stud, Copper
Mfr # KA8C
Zoro # G4677766
CAD Available
product price: $5.29
/eaKey Features
CAD Drawing
No. of Conductors
1
Min. Conductor Size
14 AWG Stranded/Solid
Max. Conductor Size
8 AWG Solid/Stranded
Stud Size
#10
Material
Copper
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA8C
Zoro #
G4677766
UPC #
781810554302
Country of Origin
India
Dimensions
Min. Conductor Size
14 AWG Stranded/Solid
Max. Conductor Size
8 AWG Solid/Stranded
Stud Size
#10
Length
0.81 in
Width
0.61 in
Length (Straight Wireway)
0.81 in
Tongue Width
0.38 in
For Stranded Copper Wire Size - Maximum
8 AWG
Overall Depth
3/8 in
Tongue Thickness
0.1 in
Overall Length
0.81 in
Overall Width
15.42 in
For Stranded Copper Wire Size - Minimum
14 AWG
Hole Diameter
0.21 in
For Stud Size
#10
Conductor Size
14-8 AWG
Dimension - Width mm
9.70 mm
Dimension - Mounting Hardware Bolt Size inch
12.24 UNC
Dimension - Hole Size inch
0.21 in
Dimension - Pad Width inch
0.38 in
Conductor - Copper Solid Size
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG
Dimension - Height inch
15.42 in
Dimension - L Length Overall mm
20.6 mm
Conductor - Copper Str Size Range
# 14 Sol. - # 8 Str.
Dimension - Bolt Size fraction
#10
Dimension - Width inch
0.38 in
Dimension - N inch
0.19 in
Dimension - Length Overall inch
0.81 in
Dimension - Hole Size fraction
11871
Dimension - Hole Size mm
5.3 mm
For Maximum Wire Size
8 AWG
For Minimum Wire Size
14 AWG
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, For Stud Size #10, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.21 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 0.38 in, Tongue Thickness 0.1 in
