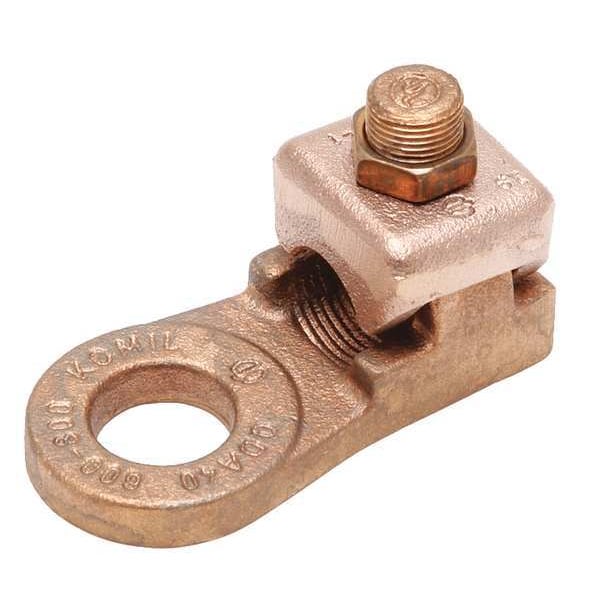

Mechanical Lug, 500 kcmil Max, 1 Conductor, 1 Hole, 3/4 in Stud, Copper
Mfr # QDA34
Zoro # G4674862
product price:Â $259.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Terminal
For Conductor Material
Copper
For Minimum Wire Size
400 kcmil
For Maximum Wire Size
500 kcmil
Number of Conductors
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- QDA34
- Zoro #
- G4674862
- UPC #
- 781810553923
- Country of Origin
- Mexico
Dimensions
- For Minimum Wire Size
- 400 kcmil
- For Maximum Wire Size
- 500 kcmil
- For Stud Size
- 3/4 in
- Hole Diameter
- 0.81 in
- Tongue Width
- 1.88 in
- Min. Conductor Size
- 400 kcmil Stranded
- Length
- 3.81 in
- Width
- 1.94 in
- Stud Size
- 3/4 in
- Max. Conductor Size
- 500 kcmil Stranded
- Length (Straight Wireway)
- 3.81 in
- Overall Depth
- 1 7/8 in
- Tongue Thickness
- 0.31 in
- For Stranded Copper Wire Size - Minimum
- 400 kcmil
- For Stranded Copper Wire Size - Maximum
- 500 kcmil
- Overall Length
- 3.63 in
- Overall Width
- 2 in
- Dimension - L Length Overall mm
- 97 mm
- Dimension - Hole Size inch
- 0.81 in
- Conductor - Copper Str Navy Size
- 400 (127) Navy;500 (127) Navy
- Dimension - Stud Size inch
- 44989
- Conductor - Copper Str Size
- 400 kcmil;450 kcmil;500 kcmil
- Dimension - Length Overall inch
- 3.63 in
- Dimension - Hole Size mm
- 21 mm
- Conductor - Copper Str Navy Size Range
- 400 (127) Navy-500 (127) Navy
- Dimension - Width inch
- 1.88 in
- Conductor - Copper Str Size Range
- 400 kcmil-500 kcmil
- Dimension - Height inch
- 2.00 in
- Dimension - Pad Width inch
- 1.88 in
- Dimension - Width mm
- 48 mm
- Dimension - Hole Size fraction
- 13/16
- Wire Rope Length
- 3.63 in
Description
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, For Stud Size 3/4 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.81 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1.88 in, Tongue Thickness 0.31 in
