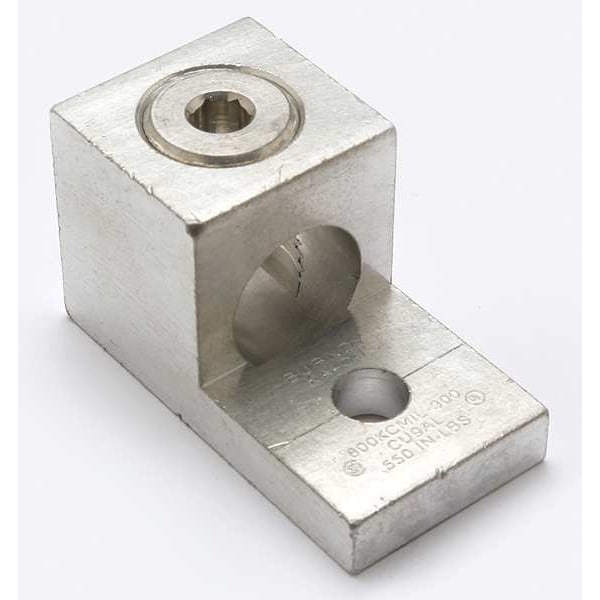

Mechanical Lug, 800 kcmil Max, 1 Conductor, 1 Hole, 1/2 in Stud, Aluminum
Mfr # KA40U
Zoro # G4651577
CAD Available
product price: $21.85
/eaKey Features
CAD Drawing
For Conductor Material
Aluminum, Copper
For Minimum Wire Size
300 kcmil
For Maximum Wire Size
800 kcmil
Number of Conductors
1
Number of Terminations
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KA40U
Zoro #
G4651577
UPC #
781810559161
Country of Origin
United States
Dimensions
For Minimum Wire Size
300 kcmil
For Maximum Wire Size
800 kcmil
For Stud Size
1/2 in
Hole Diameter
0.66 in
Tongue Width
1.77 in
Max. Conductor Size
800 kcmil Stranded
Min. Conductor Size
300 kcmil Stranded
Length
3.5 in
Stud Size
1/2 in
Width
1.95 in
Length (Straight Wireway)
3.5 in
Overall Length
3.5 in
Overall Width
1.95 in
Overall Depth
1 13/16 in
For Stranded Copper Wire Size - Maximum
800 kcmil
Tongue Length
1.85 in
For Stranded Copper Wire Size - Minimum
300 kcmil
Tongue Thickness
0.5 in
Conductor Size
300-800 KCMIL
Dimension - Length Overall inch
3.50 in
Dimension - Width fraction
1-3/4 in
Conductor - Copper Str Size
300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil
Dimension - Hole Size mm
17 mm
Dimension - D inch
1.85 in
Dimension - Bolt Size fraction
1 to 2
Dimension - Hole Size inch
0.66 in
Conductor - Copper Str Size Range
300 kcmil-800 kcmil
Dimension - Stud Size inch
44928
Dimension - Width mm
44 mm
Conductor - AL Str Size Range
300 kcmil-800 kcmil
Dimension - Height inch
1.95 in
Dimension - Pad Width inch
1.77 in
Dimension - Bolt Hole Size inch
0.62 in
Dimension - Width inch
1.75 in
Conductor - AL Str Size
300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil
Dimension - N inch
0.81 in
Dimension - L Length Overall mm
89 mm
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 800 kcmil, For Stud Size 1/2 in, Head Style Hex Socket, Number of Holes 1, Hole Diameter 0.66 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.85 in, Tongue Width 1.77 in, Tongue Thickness 0.5 in
