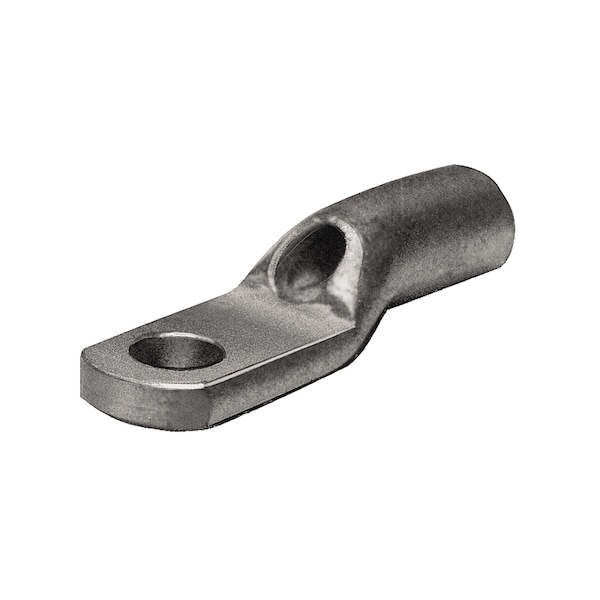

One-Hole Compression Lug, 10 AWG Max, #8 Stud, Short Barrel, Copper, Black
Mfr # YAV10R
Zoro # G0658683
product price: $1.15
/eaSold in multiples of 8 for $9.20
Key Features
Material
Copper
Color Code
Black
Gauge
#12 - #2
Hole Center to Center
1 in
Physical Attribute - Tongue Type
Ring
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YAV10R
Zoro #
G0658683
UPC #
781810025208
Country of Origin
Unknown
Dimensions
Dimension - Hole Size mm
5 mm
Dimension - Length Overall inch
0.53 in
Dimension - Z inch
0.25 in
Dimension - Pad Width inch
0.38 in
Dimension - Outside Diameter inch
0.22 in
Conductor - Copper Str Size
12;10
Dimension - Hole Size inch
0.19 in
Dimension - Strip Length inch
45062
Conductor - Copper Str Size Range
45270
Dimension - B Length inch
0.38 in
Conductor - Copper Str Aircraft Size Range
AN 12-AN 10
Dimension - Hole Size fraction
44931
Conductor - Copper Str Aircraft Size
AN 12;AN 10
Dimension - N inch
0.19 in
Dimension - B Length fraction
3/8 in
Dimension - G inch
0.57 in
Dimension - L Length Overall mm
13 mm
Dimension - Stud Size inch
#8;#9;#10
Tongue Width
0.38 in
Barrel Size
Short
For Stud Size
#8
For Wire Size
10 AWG
