  6. One-Hole Compression Lug, 14 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Black

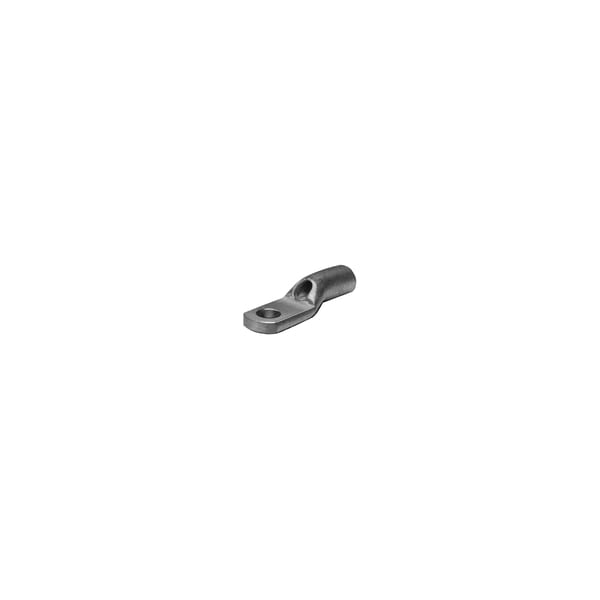

Burndy One-Hole Compression Lug, 14 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Black YAV10BOX - main

One-Hole Compression Lug, 14 AWG Max, #8, #10 Stud, Standard Barrel, Copper, Black

  • Mfr # YAV10BOX

  • Zoro # G0659663

product price:  $0.63
/ea
Sold in multiples of 14 for $8.82

Key Features

For Wire Size
14 AWG
For Conductor Material
Copper
For Stud Size
#8, #10
Material
Copper
Barrel Size
Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YAV10BOX
Zoro #
G0659663
UPC #
781810541500
Country of Origin
Unknown

Dimensions

For Wire Size
14 AWG
For Stud Size
#8, #10
Barrel Size
Standard
Tongue Width
0.38 in
Conductor - Copper Str Size Range
14 AWG-10 AWG
Dimension - L Length Overall mm
25 mm
Dimension - Stud Size inch
#8;#10
Dimension - Pad Width inch
0.38 in
Dimension - B Length fraction
44962
Conductor - Copper Str Aircraft Size Range
AN 12-AN 10
Dimension - Strip Length inch
7/16 in
Dimension - B Length inch
0.40 in
Dimension - Z inch
0.25 in
Dimension - Length Overall inch
0.97 in
Conductor - Copper Solid Size Range
12 AWG-10 AWG

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Tongue Angle
Straight
Inspection Hole
Yes
Color Code
Black
Standards
CSA Approved
Physical Attribute - Tongue Angle
Straight
Plated
Y
Type
Ring Tongue
Physical Attribute - Number of Holes
1
Plating Type
Tin
Application
For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance
Feature - Barrel Style
Chamfered
Physical Attribute - Tongue Type
Ring
Feature - Barrel Type
Standard
Certification - CSA Approved
Yes
Center Spacing
1 in
Bolt Hole
8-10 in
Beveled Entry
Yes
Number of Holes
1
