  11. One-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, None, 5 PK

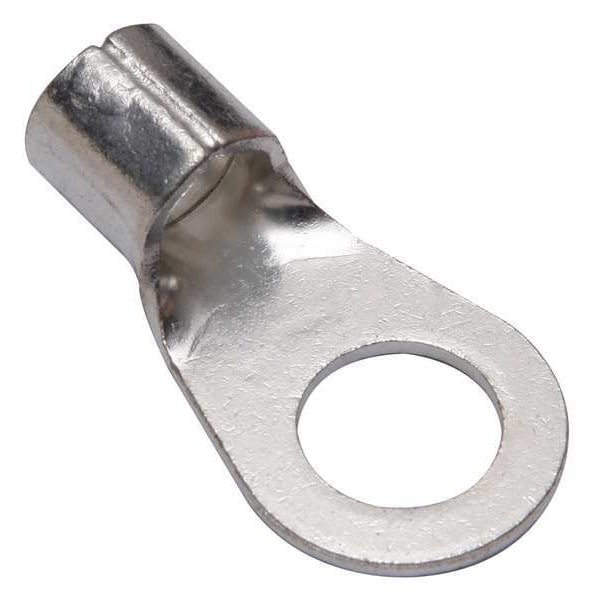

Burndy One-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, None, 5 PK YAD2CM12E12 - main

One-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, None, 5 PK

  • Mfr # YAD2CM12E12

  • Zoro # G6102022

product price: $18.65
/pk 5, $3.73/ea

Key Features

For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD2CM12E12
Zoro #
G6102022
UPC #
781810668382
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
2 AWG
For Stud Size
1/2 in
Barrel Size
Long
Tongue Width
0.87 in
Length
1.65"
Tongue Width - Wire Connector
0.87 in
Width
0.87"
Cable Size
2 AWG
Barrel Length
0.47 in
Overall Length
1.65 in
Hole Diameter
0.51 in
Barrel Outside Diameter
0.48 in
Minimum Wire Size
2 AWG
Strip Length
1/2 in
Maximum Wire Size
2 AWG
Tongue Length
0.18 in
Tongue Thickness
0.06 in
Dimension - Length Overall inch
1.65 in
Conductor Size
2 AWG
Dimension - Stud Size inch
1 to 2
Dimension - Bolt Size fraction
1 to 2
Dimension - B Length inch
0.47 in
Dimension - Pad Width inch
0.87 in
Dimension - Outside Diameter inch
0.48 in
Dimension - L Length Overall mm
42 mm
Dimension - Hole Size inch
0.51 in
Conductor - Copper Str Size
2 AWG
Dimension - Strip Length inch
17/32

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Die Code
1018
Color Code
None
Standards
UL 467
Hole Center to End
1.220"
Connection Material
Tin Plater Copper
Connector Type
YAD
Peep Hole
No
Plate Material
Tin
Insulation Color
Bare
Insulation Type
Non-Insulated
Seam
Brazed
Max. Voltage
600 V
Max. Temp.
302 Degrees F
Wire Range
2 AWG
Tongue Style
Ring
Maximum Voltage
600 V
Termination Style
Crimp
Contact Material
Copper
Compatible with Product Type
Code, Flex Cable
RoHS Compliant
Yes
Contact Finish
Tin
Compatible with Series
PAT4PC834, PAT750, PAT81KFT, Y35, Y39, Y4PC834, Y750, Y81KFT
Insulation Coverage
None
Minimum Operating Temperature
302 Degrees F
Terminal Shape
Ring Tongue
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Maximum Operating Temperature
302 Degrees F
Seam Style
Brazed
Insulation Material
None
Barrel Style
Brazed
Hole Spacing
0.75 in
Plated
Y
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Trade Name
HYLUGâ„¢
Voltage - Maximum
600 V
Industry Standard(s)
UL467
Item Type
3B
Type
Ring Tongue
Physical Attribute - Tongue Type
Ring
Feature - Barrel Type
Long
Plating Type
Tin
Conductor Type
CU C Str-SizeCU C Flex-Size

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2 AWG, Maximum Wire Size 2 AWG, Termination Style Crimp, Tongue Width 0.87 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 0.47 in, Barrel Outside Diameter 0.48 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
