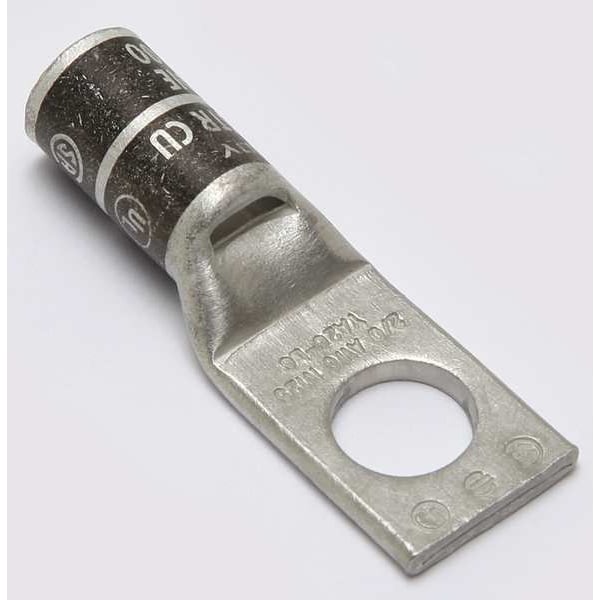

One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Brown
Mfr # YA2CL2BOX
Zoro # G4679254
product price:Â $6.79
/eaKey Features
For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
1/4 in
Material
Copper
Barrel Size
Standard
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- YA2CL2BOX
- Zoro #
- G4679254
- UPC #
- 781810555415
- Country of Origin
- United States
Dimensions
- For Wire Size
- 2 AWG
- For Stud Size
- 1/4 in
- Barrel Size
- Standard
- Tongue Width
- 0.61 in
- Barrel Length
- Short
- Length
- 1.88"
- Width
- 0.61"
- Cable Size
- 2 AWG
- Hole Size
- 0.27 in
- Overall Length
- 1.88 in
- Overall Width
- 0.61 in
- Length (Straight Wireway)
- 1.88 in
- For Stranded Copper Wire Size - Minimum
- 2 AWG
- Strip Length
- 15/16 in
- Tongue Thickness
- 0.11 in
- Tongue Length
- 0.64 in
- Barrel Outside Diameter
- 0.42 in
- For Stranded Copper Wire Size - Maximum
- 2 AWG
- Dimension - D inch
- 0.64 in
- Dimension - Bolt Size inch
- 0.25
- Dimension - L Length Overall mm
- 48 mm
- Conductor - Copper Str Navy Size
- 60 (37) Navy
- Dimension - B Length inch
- 0.88 in
- Conductor - Copper Str Size Range
- 2 AWG
- Dimension - Z inch
- 0.33 in
- Dimension - Outside Diameter inch
- 0.42 in
- Dimension - Strip Length inch
- 15/16
- Dimension - Hole Size fraction
- 2023-01-04
- Conductor Size
- 2 AWG
- Dimension - Bolt Size fraction
- 2023-01-04
- Dimension - Hole Size inch
- 0.27 in
- Dimension - Length Overall inch
- 1.88 in
- Conductor - Copper Str Size
- 2 AWG
- Conductor - Copper Str Navy Size Range
- 60 (37) Navy
- Dimension - Stud Size inch
- 44930
- Dimension - Stud Size fraction
- 44930
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Pad Width inch
- 0.61 in
- Dimension - N inch
- 0.31 in
Description
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.61 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Max. Operating Temp. 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
