  11. One-Hole Compression Lug, 300 kcmil Max, 3/8 in Stud, Long Barrel, Copper, None

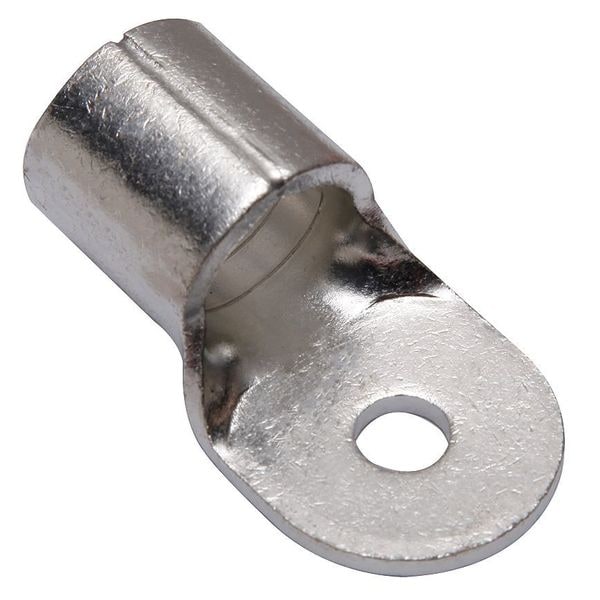

Burndy One-Hole Compression Lug, 300 kcmil Max, 3/8 in Stud, Long Barrel, Copper, None YAD31M10E38 - main

One-Hole Compression Lug, 300 kcmil Max, 3/8 in Stud, Long Barrel, Copper, None

  • Mfr # YAD31M10E38

  • Zoro # G6208736

product price: $29.19
/ea

Key Features

For Wire Size
300 kcmil
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
YAD31M10E38
Zoro #
G6208736
UPC #
781810668474
Country of Origin
Taiwan, Province of China

Dimensions

For Wire Size
300 kcmil
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
1.42 in
Barrel Length
1.1 in
Width
1.42"
Length
2.68"
Tongue Width - Wire Connector
1.42 in
Cable Size
250 Kcmil to 300 kcmil
Overall Length
2.74 in
Strip Length
1 1/4 in
Minimum Wire Size
300 kcmil
Barrel Outside Diameter
1.12 in
Tongue Length
1.64 in
Tongue Thickness
0.14 in
Maximum Wire Size
350 kcmil
Hole Diameter
0.41 in
Dimension - B Length inch
1.10 in
Conductor - Copper Str Size
300 kcmil;350 kcmil
Dimension - Outside Diameter inch
1.12 in
Dimension - Strip Length inch
37987
Dimension - Bolt Size fraction
2023-03-08
Dimension - Pad Width inch
1.42 in
Conductor - Copper Str Size Range
300-350 kcmil
Dimension - Stud Size inch
44993
Dimension - Length Overall inch
2.74 in
Dimension - Hole Size inch
0.41 in
Dimension - L Length Overall mm
70 mm

Details

Item
One-Hole Compression Lug
For Conductor Material
Copper
Material
Copper
Inspection Hole
No
Color Code
None
Standards
UL 467
Connector Type
YAD
Seam
Brazed
Max. Temp.
302 Degrees F
Wire Range
350 kcmil
Insulation Color
Bare
Insulation Type
Non-Insulated
Plate Material
Tin
Connection Material
Tin Plater Copper
Tongue Style
Ring
Peep Hole
No
Hole Center to End
1.970"
Max. Voltage
600 V
Termination Style
Crimp
RoHS Compliant
Yes
Maximum Voltage
600 V
Terminal Shape
Ring Tongue
Maximum Operating Temperature
302 Degrees F
Compatible with Product Type
Code, Flex Cable
Barrel Style
Brazed
Insulation Coverage
None
Minimum Operating Temperature
302 Degrees F
Hole Spacing
0.87 in
Contact Finish
Tin
Contact Material
Copper
Compatible with Series
PAT46, PAT4PC834, PAT750, PAT81KFT, Y46, Y4PC834, Y750, Y81KFT
Insulation Material
None
Special Features
Durable Long Lasting Corrosion Resistance, Vibration Resistance and Tensile Strength, Provide Execellent High Conductivity Connections
Seam Style
Brazed
Industry Standard(s)
UL467
Application
The YAD uninsulated OEM lug terminal is constructed of electrolytic copper
Trade Name
HYLUGâ„¢
Voltage - Maximum
600 V
Conductor Type
CU C Str-SizeCU C Flex-Size
Type
Ring Tongue
Item Type
3B
Feature - Barrel Type
Long
Plating Type
Tin
Plated
Y
Physical Attribute - Tongue Type
Ring
Number of Holes
1

Description

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 300 kcmil, Maximum Wire Size 350 kcmil, Termination Style Crimp, Tongue Width 1.42 in, Contact Finish Tin, Contact Material Copper, Standards UL 467, Barrel Length 1.1 in, Barrel Outside Diameter 1.12 in, Barrel Size Long, Barrel Style Brazed, Compatible Grainger Part Number 22P219, 22P221
