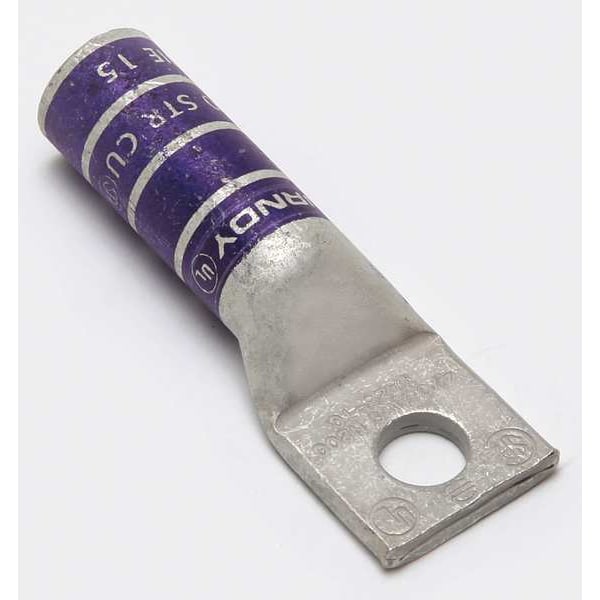

One-Hole Compression Lug, 4/0 AWG Max, 3/8 in Stud, Long Barrel, Copper, Purple
Mfr # YA28TC38
Zoro # G4701146
CAD Available
product price: $16.99
/eaKey Features
CAD Drawing
For Wire Size
4/0 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YA28TC38
Zoro #
G4701146
UPC #
781810555767
Country of Origin
United States
Dimensions
For Wire Size
4/0 AWG
For Stud Size
3/8 in
Barrel Size
Long
Tongue Width
1.02 in
Width
1.02"
Length
2.98"
Barrel Length
Long
Cable Size
4/0 AWG
Overall Width
1.02 in
Overall Length
2.98 in
Length (Straight Wireway)
2.98 in
Hole Size
0.4 in
Tongue Thickness
0.14 in
Tongue Length
0.83 in
For Stranded Copper Wire Size - Minimum
4/0 AWG
Barrel Outside Diameter
0.69 in
Strip Length
1 11/16 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Dimension - Bolt Size fraction
44993
Dimension - Bolt Size inch
0.38
Conductor - Copper Str Size
4/0 AWG
Dimension - Z inch
0.42 in
Dimension - N inch
0.41 in
Dimension - B Length fraction
1-5/8 in
Dimension - Strip Length inch
42380
Dimension - Length Overall inch
2.98 in
Dimension - B Length inch
1.62 in
Conductor - Copper Str Size Range
4/0 AWG
Dimension - Hole Size inch
0.40 in
Dimension - Outside Diameter inch
0.69 in
Dimension - Pad Width inch
1.02 in
Conductor Size
4/0 AWG
Conductor - Copper Str Navy Size
200 (61) Navy
Dimension - Stud Size inch
44993
Dimension - Bolt Hole Size inch
0.39 in
Dimension - Hole Size fraction
2023-03-08
Dimension - L Length Overall mm
76 mm
Dimension - Stud Size fraction
2023-03-08
Dimension - Hole Size mm
10 mm
Description
Compression Lug, Barrel Size Long, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1.02 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
